77-3430-0000-50005-0200
SKU: 77-3430-0000-50005-0200
BRAND: Binder
R 309.06 (inc VAT) R 268.75 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

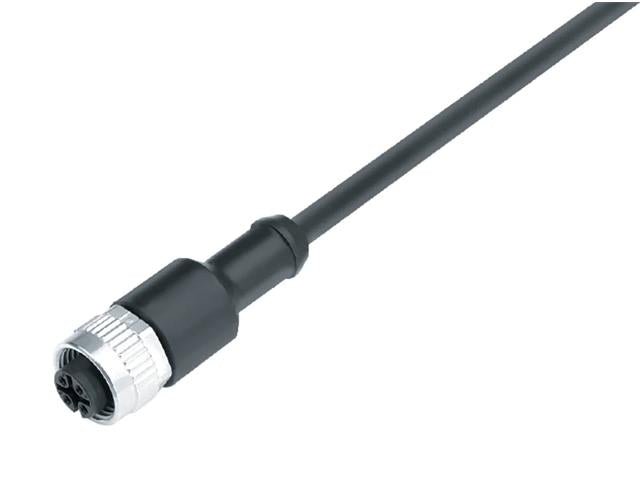

Cordset M12 A COD Female Stright. 5 Pole - Single End - 2M PUR CableIP67/IP69K - UL Approved
M12 Female Cable Connector
Specifications
Connector design : Female cable connector
Type standard : DIN EN 61076-2-101
Cable length : 10 m (Other lengths are available on request).
Version : Connector socket straight
Connector locking system : screw
Termination : moulded on the cable
Degree of protection : IP69K
Cross-sectional area : 0.34 mm² / AWG 22
Temperature range from/to : -25 °C / 90 °C
Mechanical operation : > 100 Mating cycles
Weight (g) : 415
Structure of the cable
Cable diameter : 4.3 mm
Cross section : 3 x 0.34 mm²
Sheath material : PUR
Single-lead insulation : PP9Y halogen-free
Single-lead structure : 43 x 0.10 mm
Cable color : black
Electrical properties
Conductor resistance : 60 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable : ≥ 5 x Ø
Bending radius, moving cable : ≥ 10 x Ø
Bending cycles : > 5 million
Permitted acceleration : ≥ 5 m/s²
Travel distance, horizontal : ≥ 5 m
Travel distance, vertical : ≥ 5 m
Travel speed : ≤ 200 m/min
Thermal properties
Temperature range cable in move from/to : -25 °C / 80 °C
Temperature range cable fixed from/to : -50 °C / 80 °C
Downloads
Additional Information
Device
Connector
Type
M12 | Female | Cable
Upgrade your connections with the 77-3430-0000-50005-0200 M12 Female Straight Cordset. This durable 2m PUR cable features IP67/IP69K protection, ensuring reliability in harsh environments. With a high mating cycle count and temperature resilience from -25°C to 90°C, it's perfect for any industrial application. Enjoy secure, efficient connectivity today!
