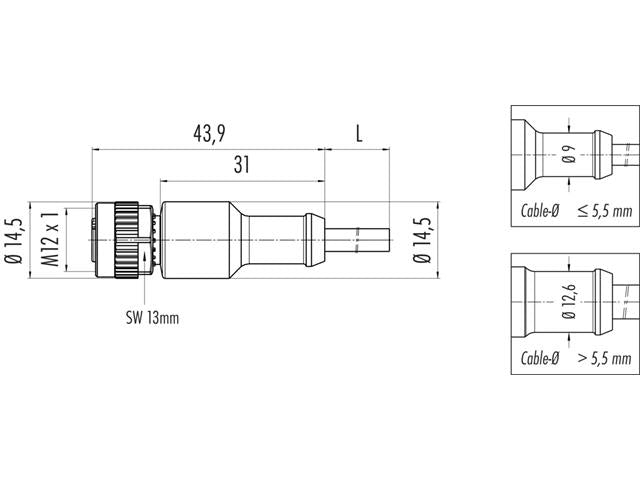

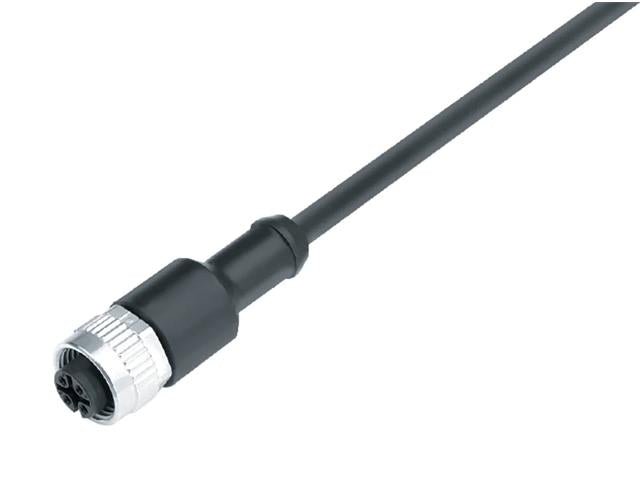

• Connector design : Female cable connector
• Type standard : DIN EN 61076-2-101
• Cable length : 2 m
• Version : Connector socket straight
• Connector locking system : screw
• Termination : moulded on the cable
• Degree of protection : IP69K
• Cross-sectional area : 0.25 mm² / AWG 24
• Temperature range from/to : -25 °C / 90 °C
• Mechanical operation : > 100 Mating cycles
• Weight (g) : 203

Structure of the cable

• Cable diameter : 6.0 mm

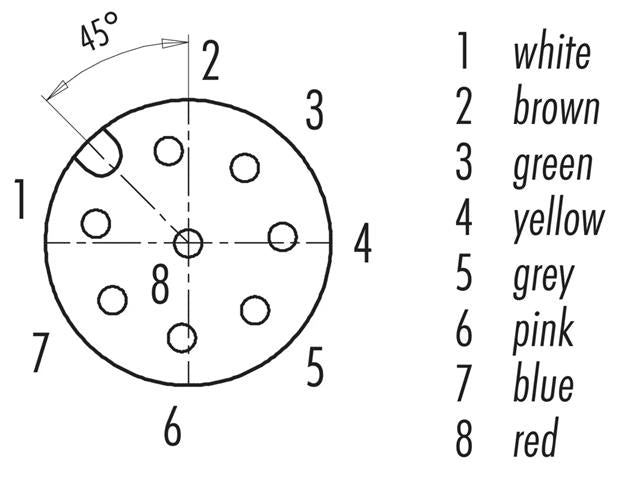

• Cross section : 8 x 0.25 mm²
• Sheath material : PUR
• Single-lead insulation : PP9Y halogen-free
• Single-lead structure : 43 x 0.10 mm
• Cable color : black

Electrical properties

• Conductor resistance : 60 Ω/Km (20°C)

Mechanical properties

• Bending radius, fixed cable : ≥ 5 x Ø
• Bending radius, moving cable : ≥ 10 x Ø
• Bending cycles : > 5 million
• Permitted acceleration : ≥ 5 m/s²
• Travel distance, horizontal : ≥ 5 m
• Travel distance, vertical : ≥ 5 m
• Travel speed : ≤ 200 m/min

Thermal properties

• Temperature range cable in move from/to : -25 °C / 80 °C
• Temperature range cable fixed from/to : -50 °C / 80 °C

1. Datasheet - 77-3430-0000-50708-0200
