77-3434-0000-50005-0200

Name: 77-3434-0000-50005-0200 - Communica [Part No: 77-3434-0000-50005-0200]
Brand: Binder
SKU: 77-3434-0000-50005-0200
Price: 248.69 ZAR
Availability: InStock

SKU: 77-3434-0000-50005-0200

BRAND: Binder

In Stock
R 285.99_{(inc VAT)}
R 248.69_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M12 Standard Sensor/Actuator Single-Ended Cordset

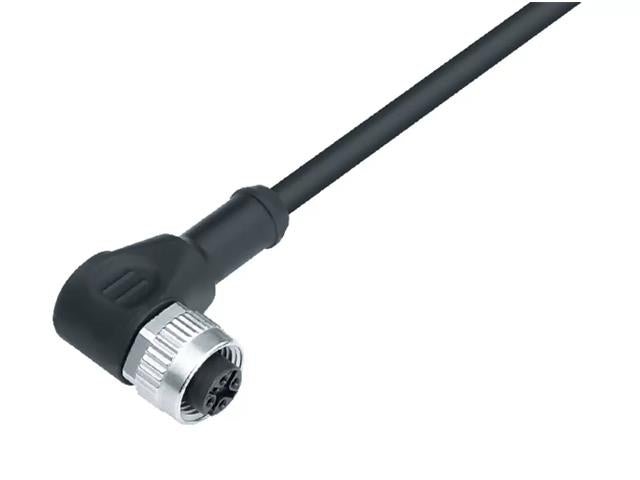

Cordset M12 A COD Female right angled 5 Pole - Single end - 2M PUR Cable IP67/IP69K - UL Approved (RKWT 5-228/2M)

Cordset M12 A COD Female right angled

Feature(s)

Part no.	77 3434 0000 50005-0200 Alternative part no.: 79 3444 32 05
Connector design	Female angled connector
Type standard	DIN EN 61076-2-101
Cable length	2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Connector socket angled
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP69K
Cross-sectional area	0.34 mm² / AWG 22
Temperature range from/to	-25 °C / 90 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	83.00

Specifications

Structure of the cable
Cable diameter	5.0 mm
Cross section	5 x 0.34 mm²
Sheath material	PUR
Single-lead insulation	PP9Y halogen-free
Single-lead structure	42 x 0.10 mm
Cable color	black
Electrical properties
Conductor resistance	60 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable	≥ 5 x Ø
Bending radius, moving cable	≥ 10 x Ø
Bending cycles	> 5 million
Permitted acceleration	5 m/s²
Travel distance, horizontal	5 m/s² -> 5 m
Travel distance, vertical	5 m/s² -> 2 m
Travel speed	≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to	-25 °C / 90 °C
Temperature range cable fixed from/to	-50 °C / 90 °C
Other features
Halogen free	yes

Additional Information

Device	Cordset
Highlights	5 Pole
Cable	2M PUR Cable
