77-3530-0000-50705-0500 - Actuator/Sensor Cable -

77-3530-0000-50705-0500

Name: 77-3530-0000-50705-0500 - Communica [Part No: 77-3530-0000-50705-0500]
Brand: Binder
SKU: 77-3530-0000-50705-0500
Price: 518.60 ZAR
Availability: InStock

SKU: 77-3530-0000-50705-0500

BRAND: Binder

In Stock
R 596.39_{(inc VAT)}
R 518.60_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M12 Standard Sensor/Actuator Single-Ended Cordset

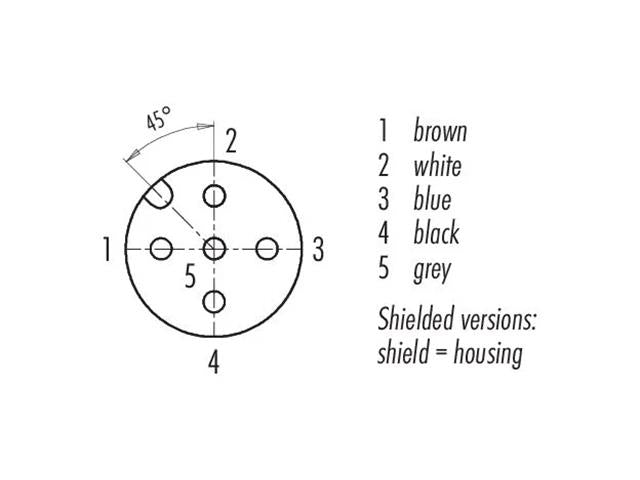

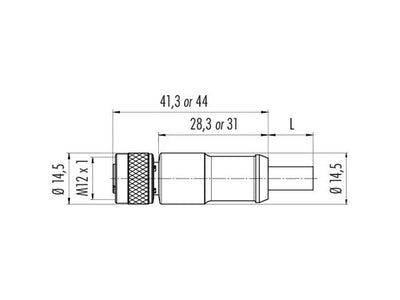

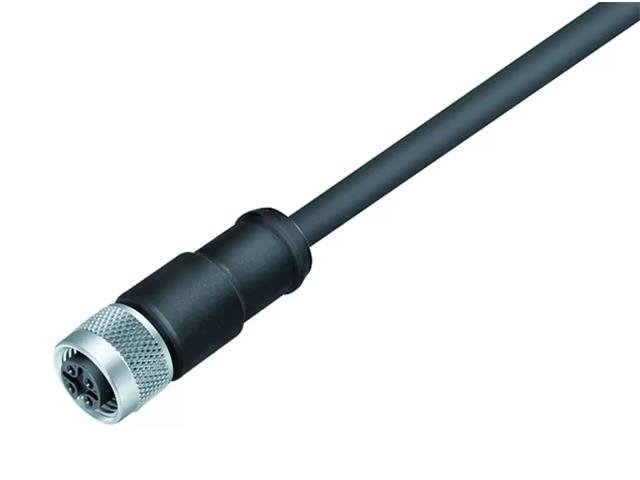

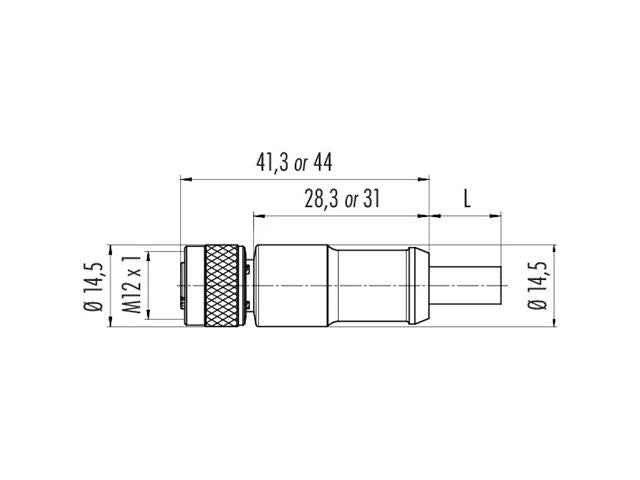

Cordset Shielded M12 A COD Female Straight. 5 Pole Single End - 5M PUR Cable

M12 A COD Shielded Female Cordset

Specifications

Connector design	Female cable connector
Type standard	DIN EN 61076-2-101
Cable length	5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version	Connector socket straight
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 90 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	377.00
Customs tariff number	85444290
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	II
EMC compliance	shielded
Shield connection	Shield on the threaded ring

Housing material	PUR
Contact body material	PUR
Contact material	CuSn (bronze)
Contact plating	Au (gold)
Locking material	CuZn (brass)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	7444a2f0-1dff-44b2-9086-206210246ce9

Structure of the cable
Cable diameter	4.8 mm
Cross section	5 x 0.25 mm²
Sheath material	PUR
Single-lead insulation	PP9Y halogen-free
Single-lead structure	32 x 0.10 mm
Cable color	black
Electrical properties
Conductor resistance	79 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable	≥ 5 x Ø
Bending radius, moving cable	≥ 10 x Ø
Bending cycles	> 2 million
Permitted acceleration	5 m/s²
Travel distance, horizontal	5 m/s² -> 5 m
Travel distance, vertical	5 m/s² -> 2 m
Travel speed	≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to	-25 °C / 90 °C
Temperature range cable fixed from/to	-50 °C / 90 °C

Downloads

Datasheet - 77-3530-0000-50705-0500

Additional Information

Device	Cordset
Type	M12 \| A COD \| Shielded \| Female
