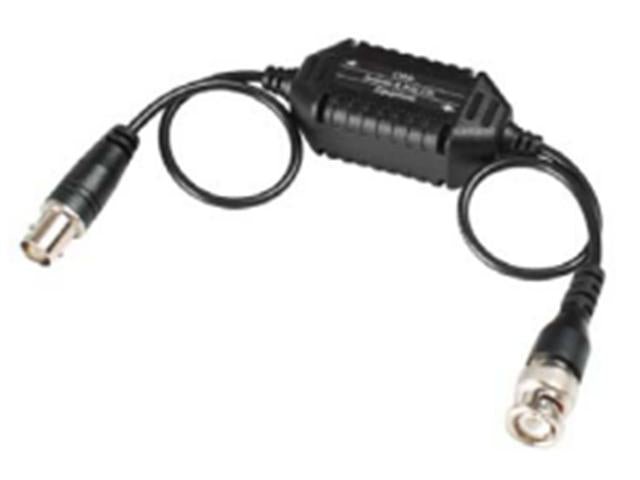

CCTV GROUND LOOP ISOLATOR IV2

The Video Ground Loop Isolator is passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, Differences in ground potentials are typically caused by unbalanced power line loads.

• Eliminate image distortion caused by ground Loops
• Eliminates Image Tearing and Cross-talk
• Protect CCTV system from interference of electrical cable
• Built-in 600V Video Isolator eliminating Interference effectively working with DVR
• Built-in Super Protection Unit

• Insertion loss : 0.5dB
• Frequency response : 20Hz~10MHz (0~3dB)
• Coaxial Input Impedance : 75 Ohms
• Coaxial IOutput Impedance : 75 Ohms
• Isolation Voltage : 600V (Minimum)
• Isolation Resistance : 100M Ohms
• Transient Voltage Suppressors : 12 Vrms
• Dimensions : 73.3x28x21mm with 18cmx2 cable
