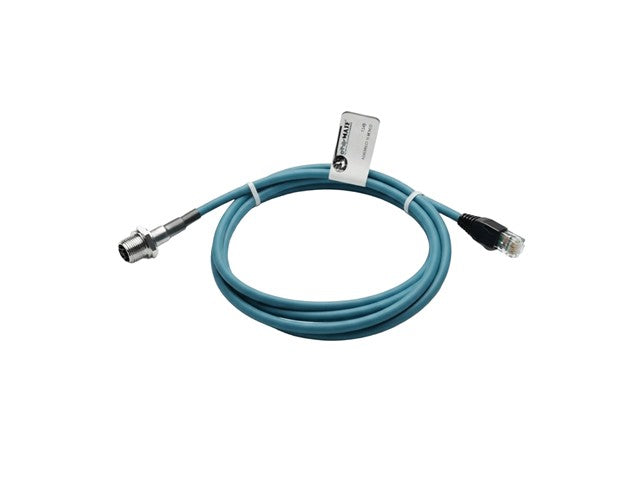

Circular Connector M12 D Cod Female 4p Screw Lock M16 X 1,5 Rear Panel Entry Front Mount To Rj45 Male Plug with 1m Shield TPE Cable IP67.
Circular Connector
Specifications
- Product Type: Industrial Ethernet Cordset
- Connector A: M12 Female Panel-Mount Receptacle
- Connector B: RJ45 Plug
- Ethernet Category: CAT5e
- Cable Length: 1.0 m
- Number of Pairs: 2
- Number of Conductors: 4
- Conductor Size: 24 AWG
- Conductor Type: Stranded (7 × 32) Tinned Copper
- Insulation Material: Polyolefin
- Jacket Material: TPE (Thermoplastic Elastomer)
- Jacket Color: Blue
- Shielding: Unshielded
- M12 Housing Material: Brass, Nickel-Plated
- M12 Contact Material: Brass, Gold-Plated
- RJ45 Contact Material: Phosphor Bronze, Gold-Plated
- RJ45 Housing Material: Polycarbonate
- RJ45 Boot Material: Elastomer Polyolefin
- Rated Current: 1.5 A
- Rated Voltage: 60 V
- Protection Rating: IP68 / NEMA 6P (M12 Connection)
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -25°C to +75°C
- Installation Temperature: -25°C to +75°C
- Minimum Bend Radius: 0.25 in (6.35 mm)
- Maximum Pulling Tension: 40 lb (18 kg)
- Compliance:
- IEC 11801 Category 5e
- TIA/EIA-568-B.2 Category 5e
- RoHS Compliant
- Typical Applications:
- Industrial Ethernet networking
- PLC and I/O connectivity
- Factory automation
- Machine control
- Industrial communication systems
- Control panel networking
Additional Information
| Device |
Connector |
| Type |
Circular | Connector | M12 D | Cod | Female |
Enhance your industrial networking with the J224TPESTPU01.0M circular connector. This M12 D cod female to RJ45 male plug features a durable 1m TPE cable and IP67 protection, ensuring reliable performance in harsh environments. Perfect for factory automation and machine control, it delivers superior connectivity and stability for your essential applications.
