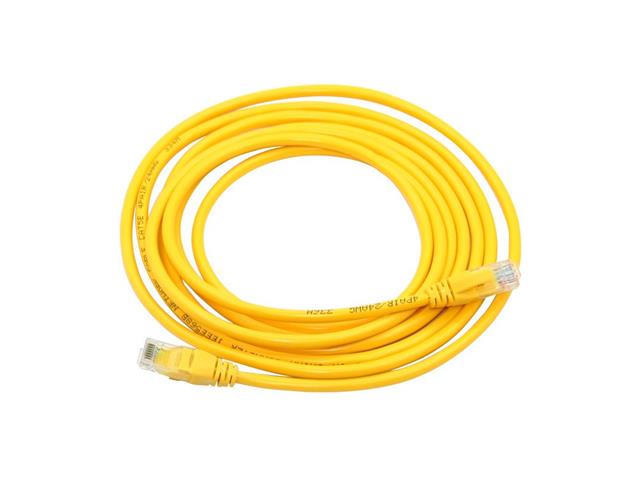

Category 6A Unshielded twisted pair (Utp) patchcords conform to class ea standards. our patchcords are made to the highest standards using only quality stranded cable, giving them the best in flexibility, plus top grade 50μ gold plated rJ45 connector plugs for high quality connections. this combination makes for outstanding performance and reduced degradation.

All patchcords are produced with an injection moulded boot with an easy depression latch cover. available across 8 colours, 6 standard lengths and in pVc or lsZH jacket varieties. For best performance we recommend these as part of a full optronicsplUs category 6a system

• Quality 24 AWG stranded (flexible) cable
• High grade 50μ gold plated rJ45 connector
• Injection moulded boot for improved strain relief
• Soft latch-cover design for easy depression applications
• Supports category 6a, 6 and 5e networks running up to 500 mHz applications
• Backwards compatible with category 6 distribution systems

Conformance

• Category 6a
• ISO/IEC 11801 : 2002
• ANSI/EIA/TIA 568B.2 : 2002
• RoHs

Conductors

• AWG : 24
• Size mm : 7/0.20 +/- 0.008
• Material : Bare copper

Insulators

• Diameter mm : 0.98+/-0.05
• Material : Polyolefin

Jacket

• External O.D. : 6.0 +/- 0.20
• Thickness mm : 0.5
• Material : PVC
