12.7-6.35mm Heat Shrink Sleeving with Excellent Flame Retardance suitable for 25-35mm2 Wire Size in Blue Colour

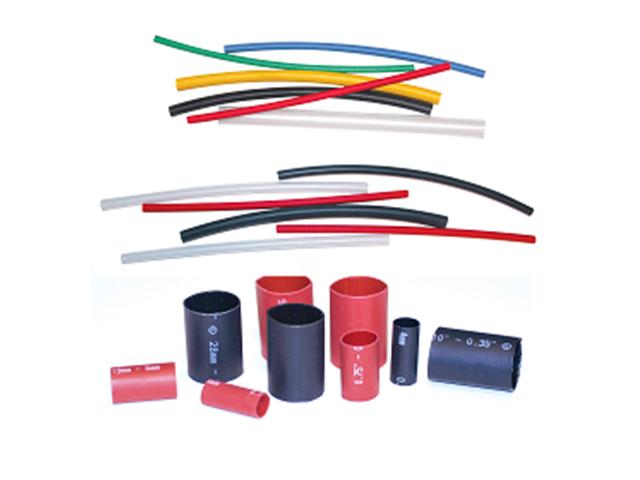

12.7mm Blue Heat Shrink Sleeve
Overview
ATW is a halogen free, RoHS, flame retardant tubing designed in closed and sensitive environments such as trains, ships and in underground mining where the of acid gas after fire must be minimised avoid consequential damage to computers, plc's and electronic control equipment. Being RoHS compliant means the product does not contain restricted substances such as Cadmium (Cd), Lead(Pb), Hexavalent Chrome (Cr6) and Mercury (Hg) RoHS is now a requirement in the automotive industry.
Feature(s)
- Cross-linked polyolefin
- Shrink Ratio 2 : 1
- Operating temperature : -55 to 125°C
- Excellent flame retardance VW-1
- Minimum shrink temperature : 70°C 600V
- UV Stable
Specifications
- Suitable Wire Size : 25-35mm2
- Tensile (MPa) : > 10.4
- Elongation (%) : > 200
- Heat Ageing
- Tensile (MPa) (158°C x 168 hrs) : > 7.3
- Elongation (%) : > 100
- Heat Shock (250°C x 4hrs) : No Cracks/Dripping
- Low temperature Flexibility (4 hrs @ -35°C) : No Cracking
- Copper Stability (158°C x 168 hrs) : Pass
- RoHS (ppm) : <200
- Flammability VW-1 : Pass
- Dielectric Strength (kV/mm) : > 15
- Volume Resistivity ASTM D 257
- Halogen Test (ppm) : <800
Downloads
Additional Information
| Device |
Heat Shrink Sleeve |
| Type |
Thin Wall |
| Colour |
Blue |
| Dielectric |
>15KV/mm |
| Shrink Ratio |
2 : 1 |
| Sleeve Diameter |
12.7mm |
| Shrunk Diameter |
6.35mm |
| Flame Retardant |
Yes |
| Min Shrink Temp |
70°C |
Protect your wires with the SHR 12.7 BLU Heat Shrink Sleeve, designed for 25-35mm2 wire sizes. This blue, flame-retardant tubing ensures safety in sensitive environments, offering excellent durability and UV stability. Ideal for automotive, marine, and industrial applications, it meets RoHS standards for a reliable, eco-friendly choice.
