SHR 19 CL

Name: SHR 19 CL - Communica [Part No: SHR 19 CL]
Brand: AirShrink
SKU: SHR 19 CL
Price: 32.50 ZAR
Availability: InStock

SKU: SHR 19 CL

BRAND: AirShrink

R 37.38_{(inc VAT)}
R 32.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Wire & Cable

Type: Cable Accessories

Category: Heat Shrink Sleeves

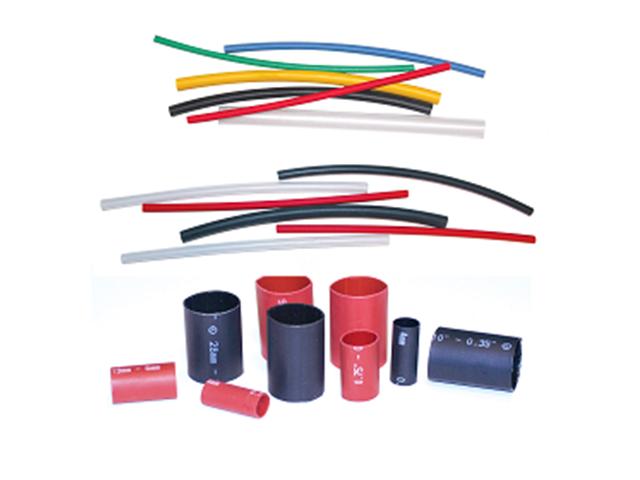

19-9.5mm Heat Shrink Sleeving with Excellent Flame Retardance suitable for 50-95mm² Wire Size in Clear Colour

19mm Clear Heat Shrink Sleeve

Overview

ATW is a halogen free, RoHS, flame retardant tubing designed in closed and sensitive environments such as trains, ships and in underground mining where the of acid gas after fire must be minimised avoid consequential damage to computers, plc's and electronic control equipment. Being RoHS compliant means the product does not contain restricted substances such as Cadmium (Cd), Lead(Pb), Hexavalent Chrome (Cr6) and Mercury (Hg) RoHS is now a requirement in the automotive industry.

Feature(s)

Cross-linked polyolefin
Shrink Ratio 2 : 1
Operating temperature : -55 to 125°C
Excellent flame retardance VW-1
Minimum shrink temperature : 70°C 600V
UV Stable

Specifications

Tensile (MPa) : > 10.4
Elongation (%) : > 200
Heat Ageing

Tensile (MPa) (158°C x 168 hrs) : > 7.3
Elongation (%) : > 100

Heat Shock (250°C x 4hrs) : No Cracks/Dripping
Low temperature Flexibility (4 hrs @ -35°C) : No Cracking
Copper Stability (158°C x 168 hrs) : Pass
RoHS (ppm) : <200
Flammability VW-1 : Pass
Dielectric Strength (kV/mm) : > 15
Volume Resistivity ASTM D 257
Halogen Test (ppm) : <800

Downloads

Datasheet - Thin Wall Heatshrink

Additional Information

Device	Heat Shrink Sleeve
Color	Clear
Dielectric	>15KV/mm
Shrink Ratio	2 : 1
Sleeve Diameter	19mm
Shrunk Diameter	9.5mm
Flame Retardant	Yes
Min Shrink Temp	70°C

Protect your wires with SHR 19 CL Heat Shrink Sleeving, featuring a robust 2:1 shrink ratio and exceptional flame retardance. Designed for critical environments, this halogen-free tubing ensures safety and reliability, keeping your electronics safe from damage. With a wide operating temperature range and UV stability, it’s the ideal choice for automotive and industrial applications. Upgrade your wiring protection today!
