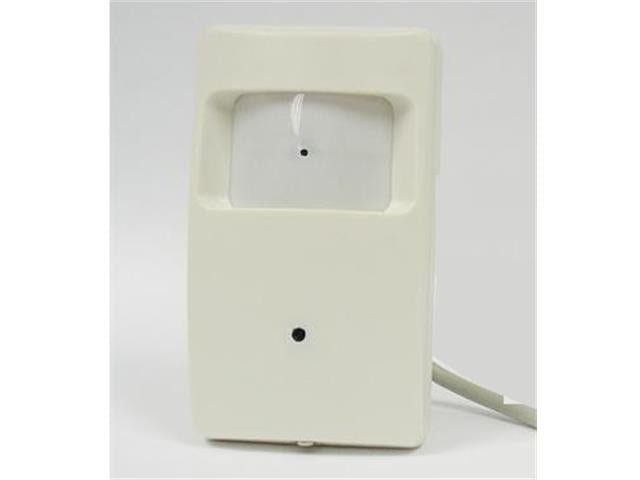

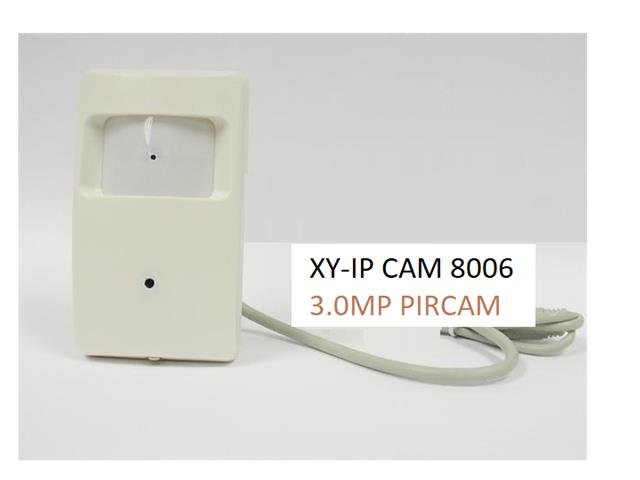

Xytron, HD 3 Megapixel, PIR Color Camera Pin Hole Lens 3.7mm, Electronic Shutter, Auto White Balance. White Case
HD 3 Megapixel PIR Color Camera
Specifications
- Image sensor : 3.0M 1/2.7"SC4239P Black light illumination CMOS sensor
- Min.illumination : Color 0.001Lux @(F1.2,AGC ON) black/white 0.0001 Lux @ (F1.2,AGC ON)
- Shutter : 1/50(1/60)s - 1/10,000 s
- Day/night : Support IR-CUT
- Noise Reduction : Support 2D/3D
- WDR : Digital
- LED : N/A
- Distance : N/A
- Lens : 3.7mm 3 Megapixel pinhole lens
Video & Audio compression
- Video : H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream, AVI;
- Bite rate : 0.1M~8Mpbs variable;1~30f/s variable
- Audio : G.711,audio&video synchronization
- Audio interface : 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;0ch output(expandable to 1ch)
- Max.Image Resolution : 3MP 2304*1296@20fps
- Image Output : Main stream: 2304*1296@20fps,1920*1080@25fps; Sub-stream: 800*448@25fps,704*576@25fps, 640*360@25fps
- Image setting Saturation, brightness and contrast are adjustable through IE browser or client
Network
- Intelligence : Supporting human detection, face detection, and support to customize other intelligent functions
- Net interface 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc
- Reliability : Comprehensive lightning protection, 7 * 24 hours-10°C~65°C high temperature stable and reliable testing
- Onvif : Yes
Others
- Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end
- Storage/playback/download, and center reminder and image linkage,support JPEG
- Capture;united remote client monitoring sofaware、MYEYE;perfect SDK
- Mobile Monitoring : Support multiple mobile monitoring(iOS,Android)
General
- Operating Condition : Humidity less than 90%( non-condensing)
- Power supply : DC12V ±10%
- Weight : 150g
Downloads
Additional Information
| Device |
Camera |
| Type |
HD | 3 Megapixel | PIR | Color |
