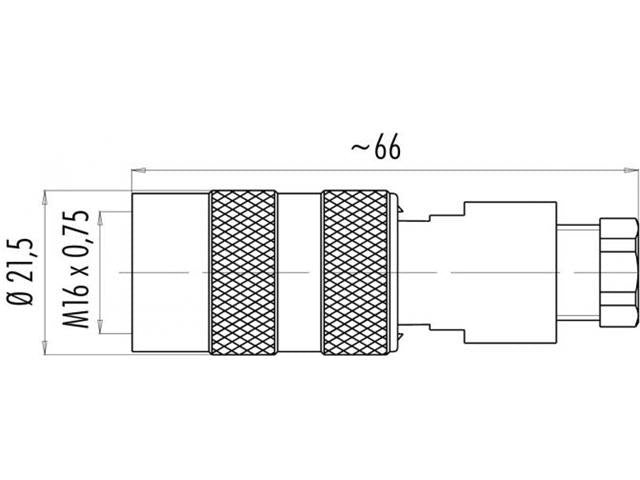

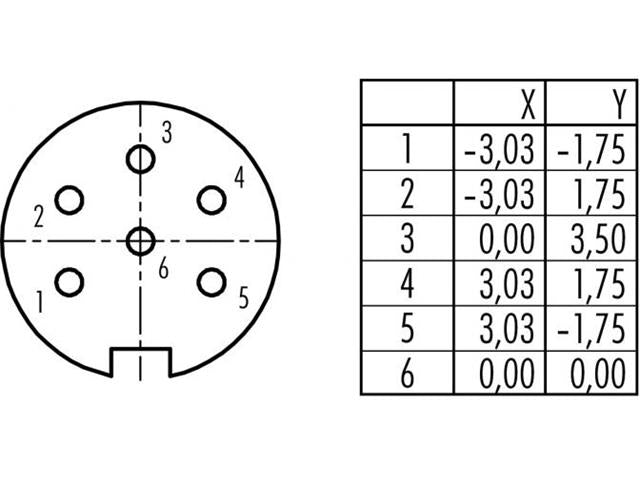

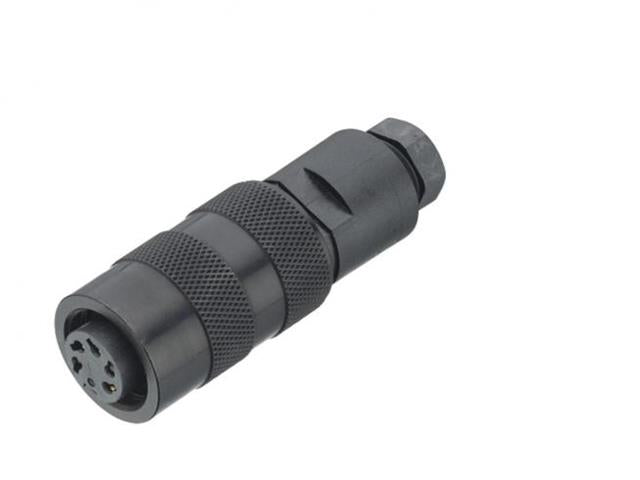

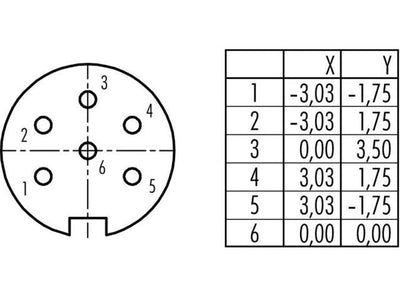

M16 Cable Female Circular Connector Stright 6 Pole DIN Silver Plated Contacts Screw Lock 8mm Cable Entry IP67
M16 Cable Female Circular Connector
Specifications
- Connector design : female cable connector
- Rated current (40 °C) : 5 A
- Connector locking system : screw
- Rated voltage 250 V
- Termination : solder
- Rated impulse voltage : 1500 V
- Wire gauge (mm) : 0.75 mm²
- Pollution degree : 1
- Wire gauge (AWG) : 18
- Overvoltage category : I
- Cable outlet : 6.0 - 8.0 mm
- Insulating material group : III
- Insulation resistance : ≥ 10¹⁰ Ω
- Lower limit temperature : – 40 °C
- EMC compliance : shielding is not possible
- Customs tariff number : 85369010
- Degree of protection : IP67
- Mechanical operation : > 500Mating cycles
Downloads
Additional Information
Device |
Connector |
Type |
M16 Cable | Female | Circular |
