09-0131-80-12

SKU: 09-0131-80-12

BRAND: Binder

In Stock
R 339.25_{(inc VAT)}
R 295.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

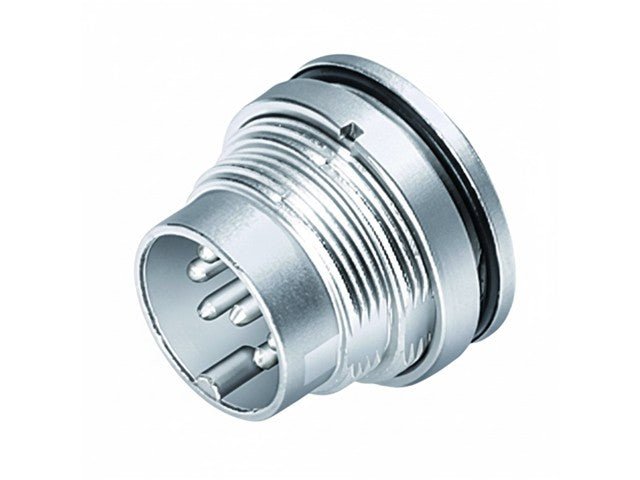

Circular Connector M16 Panel Male 12 Pole DIN Front Mount Gold Plated Solder Contacts IP67

Features

M16 IP67 male panel mount connector, Contacts: 12, shielding is not possible, solder, IP67, UL

Specifications

Product Type	Miniature Connector
Series	723
Gender	Male
Connector Size	M16
Number of Contact	12
Current Rating	3 A
Voltage Rating	60 V
Impulse Voltage	500 V
Housing Material	Die-Cast Nickel-Plated Zinc
Contact Body Material	PBT (UL94 V-0)
Contact Material	CuZn (Brass)
Contact Plating	Au (Gold)
Mounting Type	Panel Mount
Wire Gauge (mm)	0.25 mm²
Wire Gauge (AWG)	24 AWG
Insulation Resistance	≥10^10 Ω
IP Rating	IP67
Termination	Solder
Connector Locking System	Screw
Maximum Temperature Range	+95 °C
Minimum Temperature Range	-40 °C

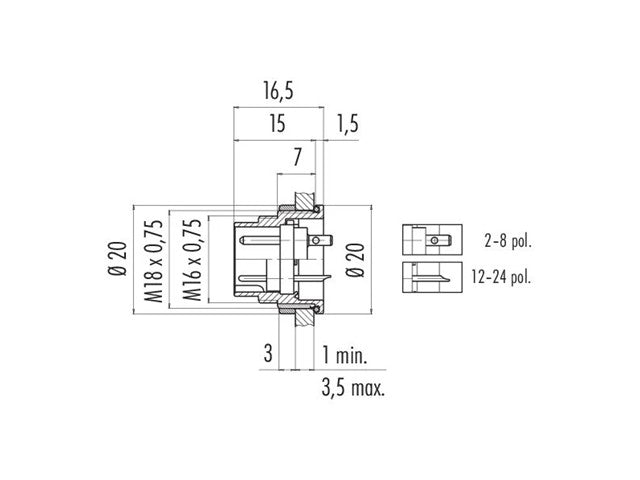

Diameter	20 mm
Length	16.5 mm
Pollution Degree	1
Overvoltage Category	I
Insulating Material Group	III
Mechanical Operation	>500 (Mating) cycles

Downloads

Datasheet Download
