SKU: 09-0171-70-08

BRAND: Binder


In Stock
R 613.30 (inc VAT)
R 533.30 (ex VAT)

Collections:

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

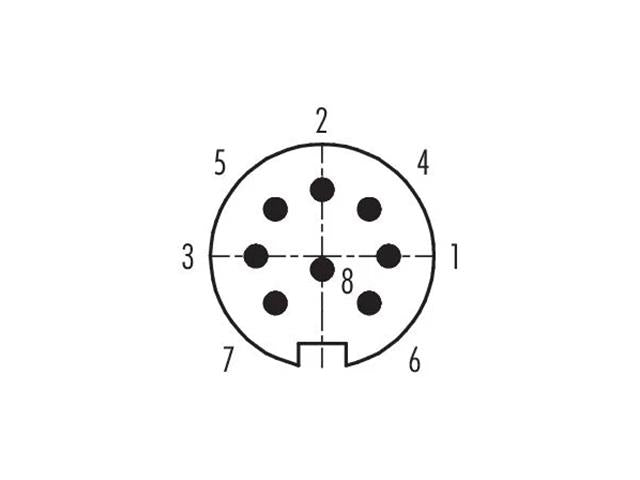

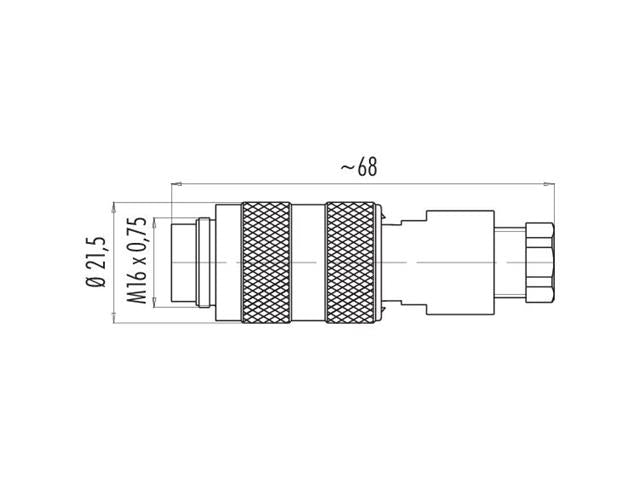

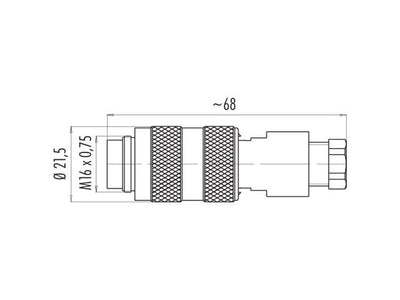

Circular Connector M16 Cable Male Straight 8 Pole DIN Silver Plated Contacts Solder Screw Lock 8mm Cable Entry 5A 60V IP67

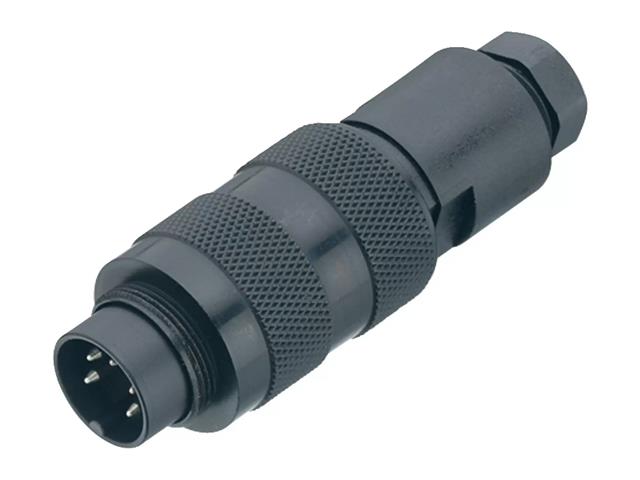

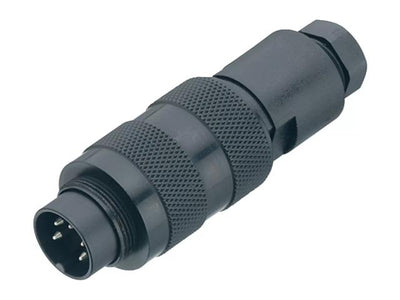

M16 Cable Male Circular Connector

Specifications

Connector design Male cable connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Cable outlet 6.0-8.0 mm
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 38.14
Customs tariff number 85369010
Country of Origin DE
Electrical parameters
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Material
Housing material PA
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Ag (silver)
REACH SVHC CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
SCIP number 69b275ee-2e3c-4a99-b3e7-c03f397d3d6a



Downloads

Additional Information

Device Connector
Type M16 | Cable | Male | Circular
