09-0172-70-08

SKU: 09-0172-70-08

BRAND: Binder

In Stock
R 707.25_{(inc VAT)}
R 615.00_{(ex VAT)}

Collections: Circuit Protection, Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

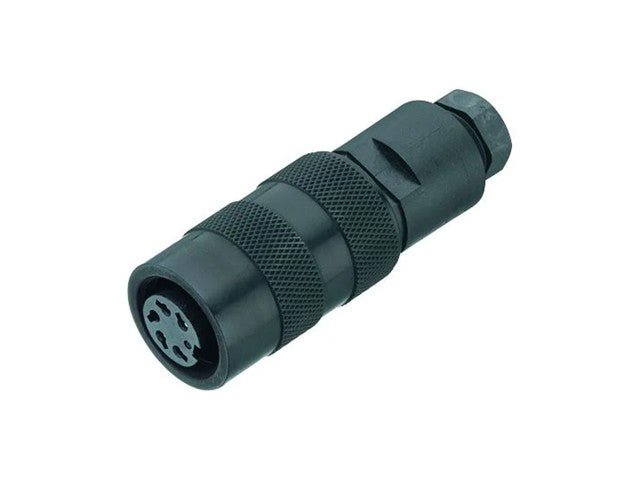

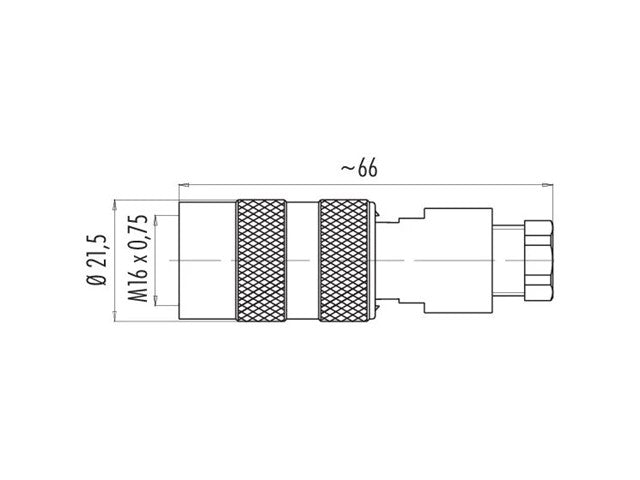

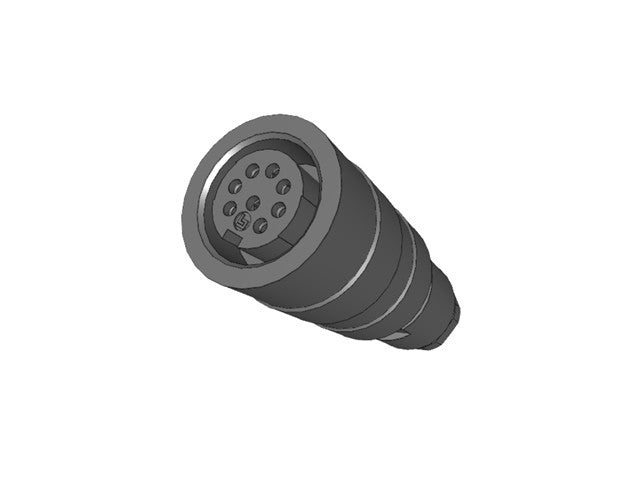

Circular Connector M16 Cable Female Straight 8 Pole DIN Silver Plated Contacts Solder Screw Lock 8mm Cable Entry 5A 60V IP67

M16 Circular Connector

Specifications

Part no.	09 0172 70 08
Connector design	Female cable connector
Type standard	DIN EN 61076-2-106
Version	Connector socket straight
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Cross-sectional area	0.75 mm² / AWG 18
Cable outlet	6.0-8.0 mm
Temperature range from/to	-40 °C / 95 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	40.63
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	500 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PBT (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Ag (silver)
REACH SVHC	CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
SCIP number	6a6eca2f-8203-4859-8a89-1a29291e7794

Downloads

Datasheet - 09-0172-70-08

Additional Information

Device	Connector
Type	M16 \| Female \| Circular
