09-0315-80-05

SKU: 09-0315-80-05

BRAND: Binder

In Stock
R 128.97_{(inc VAT)}
R 112.15_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP40

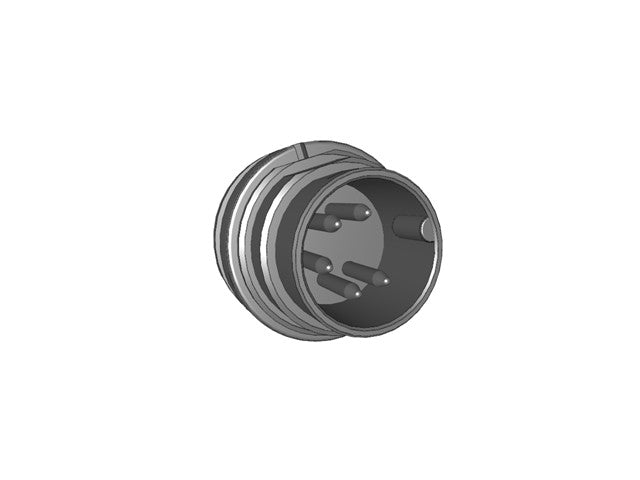

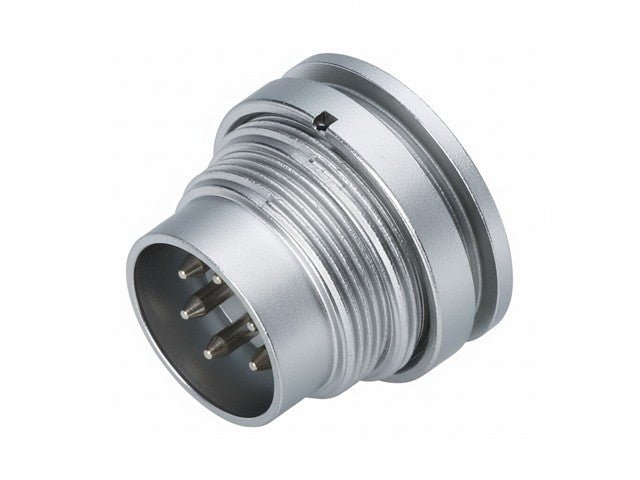

5 way Male Socket Connector with IP40 250V 6A Screw Locking and Solder termination

Features

M16 IP40 male panel mount connector, Contacts: 5, shielding is not possible, solder, IP40

Specifications

Product Type	Miniature Connector
Series	680
Gender	Male
Connector Size	M16
Number of Contact	5
Current Rating	6 A
Voltage Rating	250 V
Impulse Voltage	1500 V
Housing Material	Die-Cast Nickel-Plated Zinc
Contact Body Material	PBT (UL94 V-0)
Contact Material	CuZn (Brass)
Contact Plating	Ag (Silver)
Mounting Type	Panel Mount
Wire Gauge (mm)	0.75 mm²
Wire Gauge (AWG)	18 AWG
Insulation Resistance	≥10^10 Ω
IP Rating	IP40
Termination	Solder
Connector Locking System	Screw
Maximum Temperature Range	+85 °C
Minimum Temperature Range	-40 °C

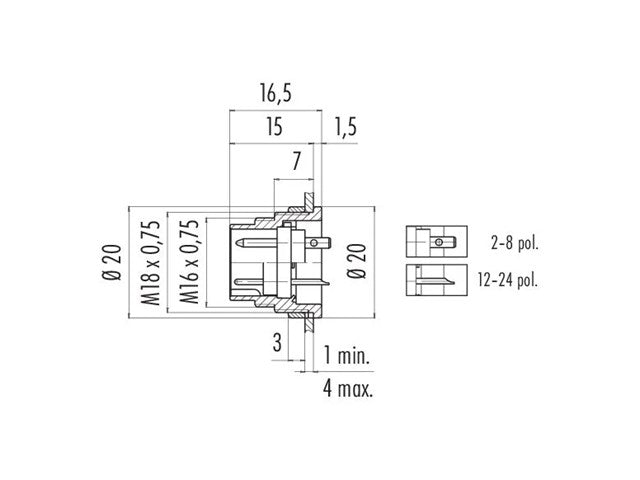

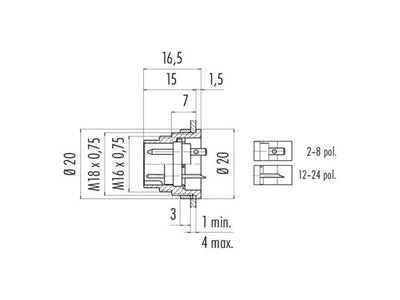

Diameter	20 mm
Length	16.5 mm
Pollution Degree	1
Overvoltage Category	I
Insulating Material Group	III
Mechanical Operation	>500 (Mating) cycles
