09-0327-80-07

SKU: 09-0327-80-07

BRAND: Binder

In Stock
R 191.48_{(inc VAT)}
R 166.50_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP40

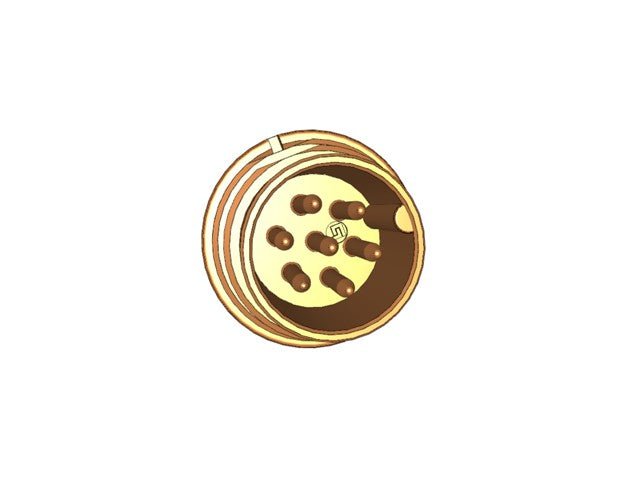

Male Socket • 7way • Solder • Front Fastened

Features

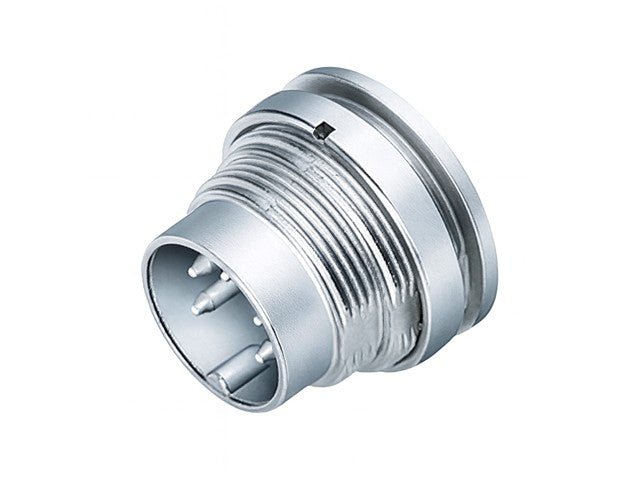

M16 IP40 male panel mount connector, Contacts: 7, shielding is not possible, solder, IP40

Specifications

Product Type	Miniature Connector
Series	680
Gender	Male
Connector Size	M16
Number of Contact	7
Current Rating	5 A
Voltage Rating	125 V
Impulse Voltage	800 V
Housing Material	Die-Cast Nickel-Plated Zinc
Contact Body Material	PBT (UL94 V-0)
Contact Material	CuZn (Brass)
Contact Plating	Ag (Silver)
Mounting Type	Panel Mount
Wire Gauge (mm)	0.75 mm²
Wire Gauge (AWG)	18 AWG
Insulation Resistance	≥10^10 Ω
IP Rating	IP40
Termination	Solder
Connector Locking System	Screw
Maximum Temperature Range	+85 °C
Minimum Temperature Range	-40 °C

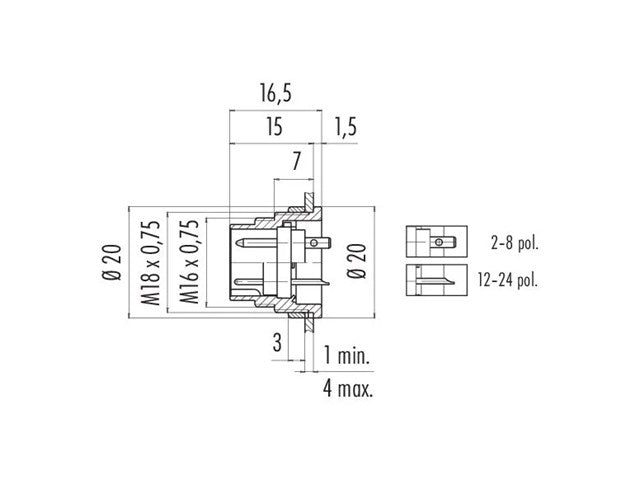

Diameter	20 mm
Length	16.5 mm
Pollution Degree	1
Overvoltage Category	I
Insulating Material Group	III
Mechanical Operation	>500 (Mating) cycles

Downloads

Datasheet Download
