09-0337-00-16

SKU: 09-0337-00-16

BRAND: Binder

In Stock
R 429.87_{(inc VAT)}
R 373.80_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP40

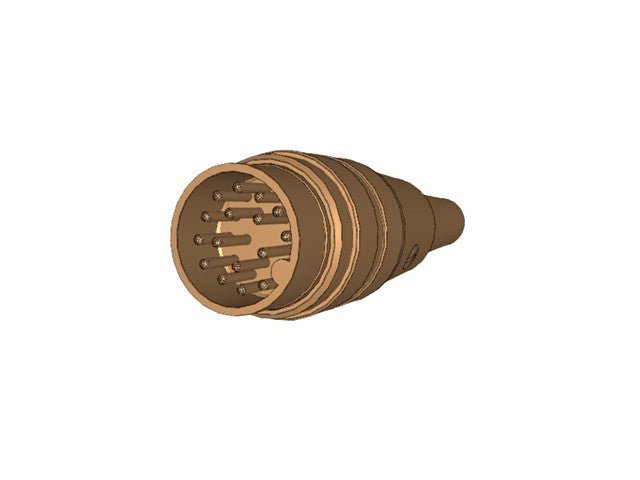

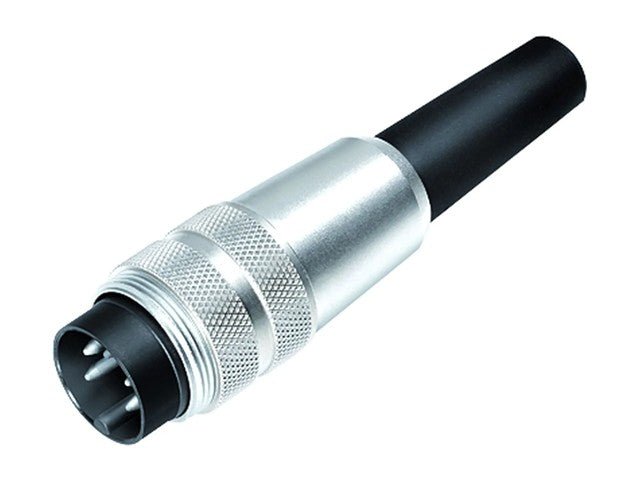

Circular Connector M16 Cable Male Straight, 16 Pole Gold Plated Contacts Screw Lock 6mm Cable Entry IP40

Features

M16 IP40 cable connector, Contacts: 16, 3.0 - 6.0 mm, shielding is not possible, solder, IP40

Specifications

Product Type	Miniature Connector
Series	680
Gender	Male
Connector Size	M16
Number of Contact	16
Current Rating	3 A
Voltage Rating	60 V
Impulse Voltage	500 V
Housing Material	PA
Contact Body Material	PBT (UL94 V-0)
Contact Material	CuZn (Brass)
Contact Plating	Au (Gold)
Mounting Type	Cable Mount
Wire Gauge (mm)	0.25 mm²
Wire Gauge (AWG)	24 AWG
Cable Outlet Size	3 to 6 mm
Insulation Resistance	≥10^10 Ω
IP Rating	IP40
Termination	Solder
Connector Locking System	Screw
Maximum Temperature Range	+85 °C
Minimum Temperature Range	-40 °C

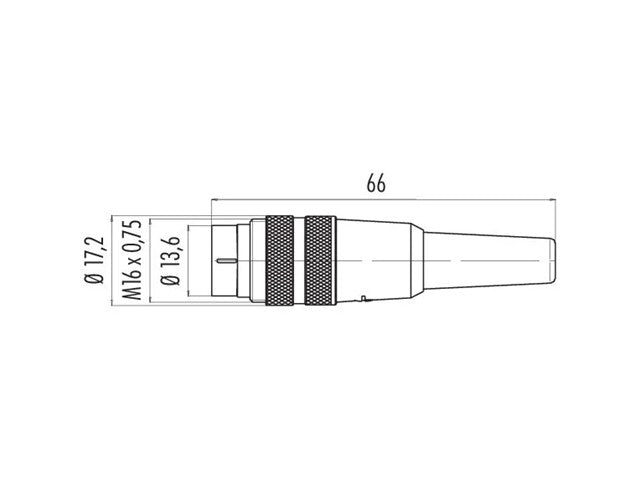

Diameter	17.2 mm
Length	66 mm
Pollution Degree	1
Overvoltage Category	I
Insulating Material Group	III
Mechanical Operation	>500 (Mating) cycles
