09-0416-80-05

Name: 09-0416-80-05 - Communica [Part No: 09-0416-80-05]
Brand: Binder
SKU: 09-0416-80-05
Price: 242.72 ZAR
Availability: OutOfStock

SKU: 09-0416-80-05

BRAND: Binder

Sold Out
R 279.13_{(inc VAT)}
R 242.72_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M9 Connectors IP67

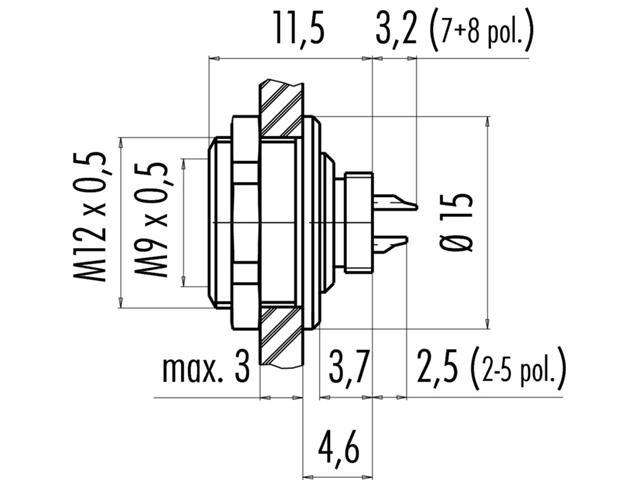

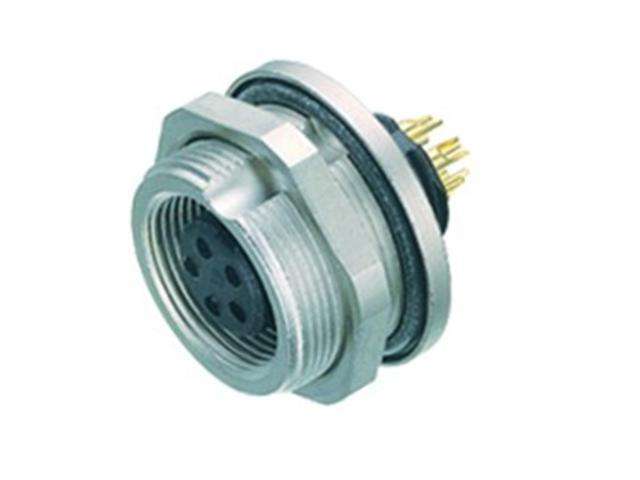

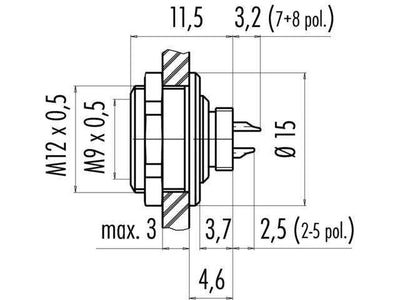

5 way Subminiture Front Fastened Panel Mount Female socket circular Connector M9 IP67

Overview

Features

Specification

Connector locking system: Screw
Termination: Solder
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Degree of protection: IP 67
Mechanical operation: 500 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 125 V
Rated impulse voltage: 1500 V
Pollution degree: 1
Overvoltage category: II
Material group: III
Rated current (40°C): 3 A
Volume resistivity: 3 mO
Material of contact: CuSn (bronce)
Contact plating: Au (gold)
Material of contact body: PA (UL 94 V-0)
Material of housing: CUZn (brass nickel plated)
Group: Subminiature Circular Connector
Brand: Binder
Gender: Female
Degree of Protection: IP67

Downloads

09-0416-80-05 Datasheet

Discover the 09-0416-80-05 Subminiature Circular Connector, designed for reliability with an IP67 rating. Perfect for demanding environments, this female socket offers superior durability, withstanding extreme temperatures and 500 mating cycles. Enhance your projects with this high-quality connector, ensuring secure connections and optimal performance.
