09 - 3432 - 433 - 04 - Circular Connectors - 2050001614001

09-3432-433-04

Name: 09-3432-433-04 - Communica [Part No: 09-3432-433-04]
Brand: Binder
SKU: 09-3432-433-04
Price: 275.85 ZAR
Availability: InStock

SKU: 09-3432-433-04

BRAND: Binder

In Stock
R 317.23_{(inc VAT)}
R 275.85_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

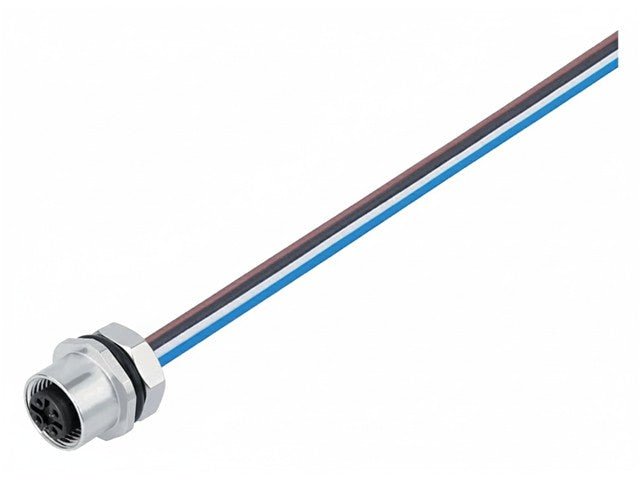

Circular Connected M12 A COD Panel Female 4 Pole PG9 With Single Wires 8A 250V IP67

Female 4 Pole PG9 Circular Connector

Specifications

Connector design : Flange box
Execution : Connector socket straight
Connector Locking : Screws
Connection type : Strands
Protection : IP68
Connection cross-section : 0.90 mm2 / AWG 18
Limit temperature from / to : -40 °C / 85 °C
Mechanical lifespan : > 100 plug-in cycles
Weight (gr) : 18.5
Customs tariff number : 85369010

Electrical Characteristics

Rated voltage : 250 V
Rated shock voltage : 2500 V
Rated current (40°C) : 8 A
Insulation resistance : > 10⁸
Degree : 3
Surge category : Ⅱ
Insulating material group : Iii

Materials

Material Housing : Zinc die-cast nickel-plated
Material contact body : Pa
Material Contact : CuSn (bronze) / CuZn (brass)
Contact surface : Au (Gold)

Downloads

Datasheet - 09-3432-433-04

Additional Information

Device	Connector
Type	Female \| 4 Pole \| PG9 \| Circular
