103 - 40014 - Backplane & Rack Connectors - 4099891020927

103-40014

SKU: 103-40014

BRAND: EPT GMBH



R 45.71 (inc VAT)
R 39.75 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

Collections:

Type: Backplane & Rack Connectors

Category: DIN 41612 Connectors Series C

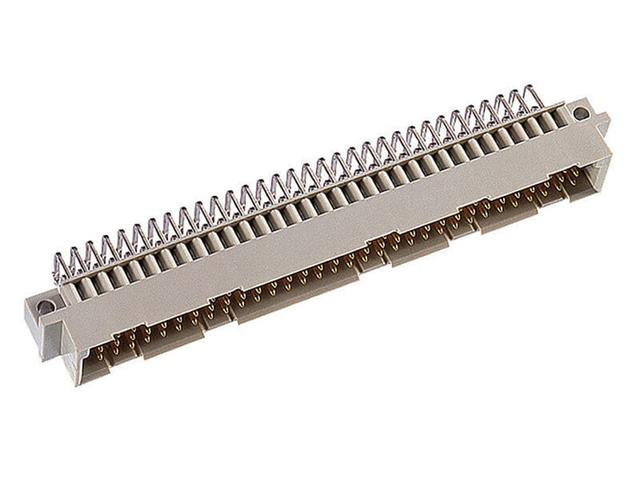

DIN41612 Male Type C PCB Connector • 32 positions in Rows A,C • Right Angled PCB

Male Type C PCB Connector

Specifications

Basics

  • Performance Level : 2
  • No. of Contacts : 32
  • Termination Technology : solder
  • Termination Length : 3 mm
  • Operating Temperature Range : -55°C to +125°C

Material

  • Insulator Material : PBT glass filled UL 94 V-0
  • CTI : value
  • IEC  : 60112    200
  • Contact Material : Copper alloy

Mechanical

  • Pitch : 2.54 mm
  • Mating Force : < 30 N
  • Separating Force per Pin : >0.15 N
  • Durability : 400  mating cycles

Electrical

  • Operational Current : 1.5 A
  • Contact Resistance : <20 mΩ
  • Clearance and Creepage : cr: ≥ 3.0 mm
  • Insulation Resistance : >106 MΩ
  • Test Voltage : 1000V

Downloads

Additional Information

Device Connector
Type Male | Type C | PCB
Termination Right Angled PCB
Row Positions Rows A,C
Discover the 103-40014 DIN41612 Male Type C PCB Connector, featuring 32 positions in a right-angled design. With exceptional durability and a wide operating temperature range, this connector ensures reliable performance for your electronic projects. Upgrade your connections with this high-quality, solder-termination solution that withstands extreme conditions and provides superior conductivity.
