111-40164

SKU: 111-40164

BRAND: EPT GMBH

In Stock
R 189.00_{(inc VAT)}
R 164.35_{(ex VAT)}

Collections: Connectors

Type: Backplane & Rack Connectors

Category: DIN 41612 Connectors Series G

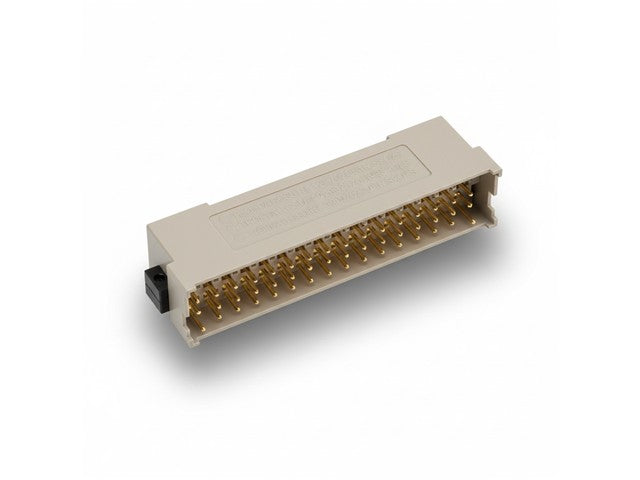

Male Connector G Type 64 Way Row CLASSII - with EXT Pin on Z2 - DIN41612 / IEC 60603-2

64 Way Male G Type Connector

Feature(s)

Termination length 3 mm
64 contacts
premating contact at pos. Z2
solder
performance level 2

Specifications

Basic

Performance Level : 2
No. of Contacts : 64
Termination Technology : solder
Termination Length : 3 mm
Operating Temperature Range : -55°C to +125°C

Material

Insulator Material : PC glass filled UL 94 V-2
CTI : value
IEC : 60112 200
Contact Material : Copper alloy

Mechanical

Pitch : 5.08 x 3.81 mm
Mating Force : < 100 N
Separating Force per Pin : >0.2 N
Durability : 400 mating cycles

Electrical

Operational Current : 5.6 A
Contact Resistance : <15 mΩ
Clearance and Creepage : cr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance : >106 MΩ
Test Voltage : 1550 V

Downloads

Datasheet - 111-40164

Additional Information

Device	Connector
Type	64 Way \| Male \| G Type
