112-40065

SKU: 112-40065

BRAND: EPT GMBH

In Stock
R 204.30_{(inc VAT)}
R 177.65_{(ex VAT)}

Collections: Connectors

Type: Backplane & Rack Connectors

Category: DIN 41612 Connectors Series G

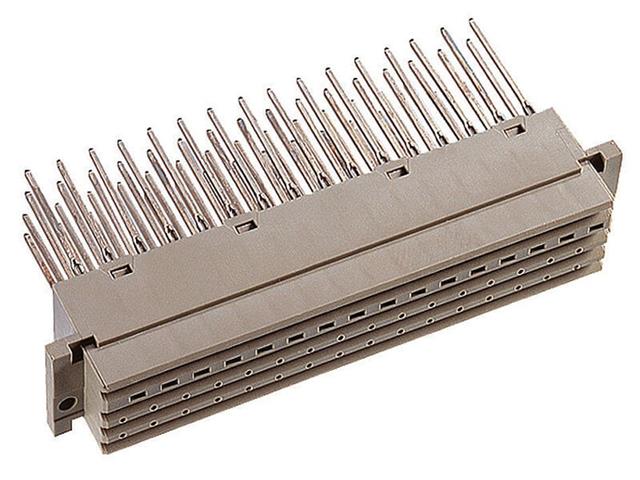

Female Connector G Type 64 Way Row ClassII - Wirewrap Contacts - DIN41612 / IEC 60603-2

64 Way G Type Female Connector

Specifications

Basics

Performance Level : 2
No. of Contacts : 64
Termination Technology : solder
Termination Length : 22 mm
Operating Temperature Range : -55°C to +125°C

Material

Insulator Material : PBT glass filled UL 94 V-0
CTI : value
IEC : 60112 200
Contact Material : Copper alloy

Mechanical

Pitch : 5.08 x 3.81 mm
Mating Force : < 100 N
Separating Force per Pin : >0.2 N
Durability : 400 mating cycles

Electrical

Operational Current : 5.6 A
Contact Resistance : <15 mΩ
Clearance and Creepage : cr: ≥ 1.2 mm
Insulation Resistance : >10⁶ MΩ
Test Voltage : 1550V

Downloads

Datasheet - 112-40065

Additional Information

Device	Connector
Type	64 Way \| G Type \| Female
