12146-2VX778

Name: 12146-2VX778 - Communica [Part No: 12146-2VX778]
Brand: Apem
SKU: 12146-2VX778
Price: 2441.25 ZAR
Availability: OutOfStock

SKU: 12146-2VX778

BRAND: Apem

Sold Out
R 2,807.44_{(inc VAT)}
R 2,441.25_{(ex VAT)}

Collections: Electromechanical

Type: Switches

Category: Toggle Switches

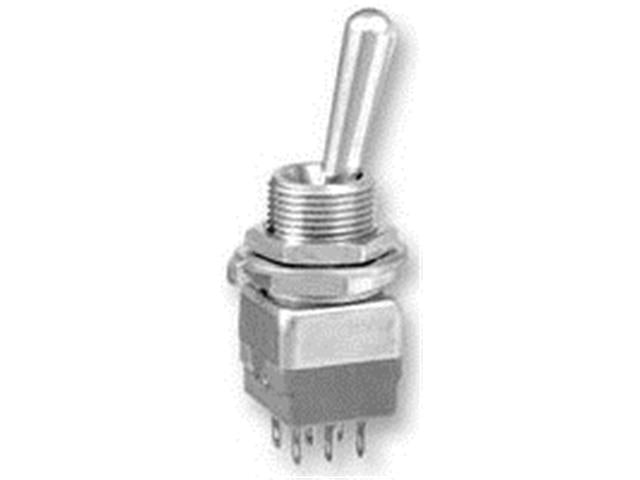

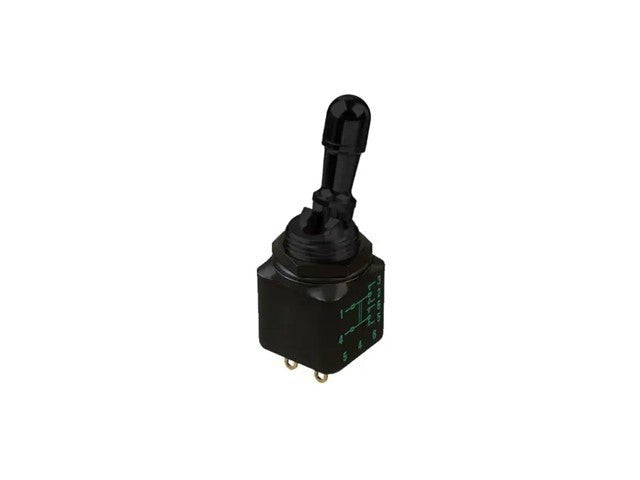

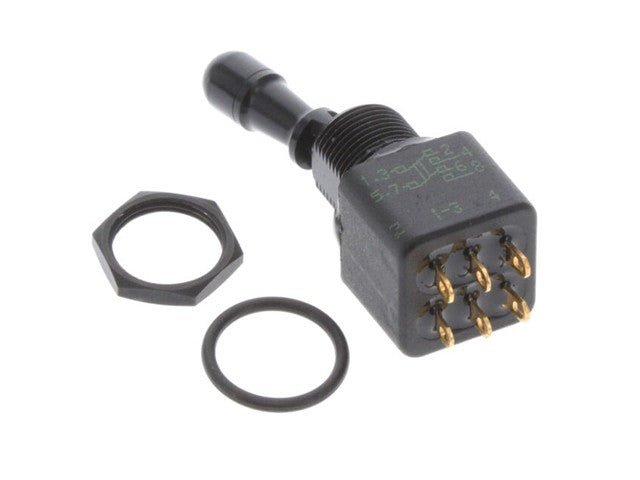

APEM Toggle Switch HI Performance Double Pole On-On Solder Lug 4A 28VDC 2 Locked Positions Threaded Bush 11,9 (15/32) Black Finish

HI Performance Double Toggle Switch

Specifications

Max. current/voltage rating with resistive load : 4A 28VDC
Minimum load : 10mA 50mV, 10μA 5VDC
Initial contact resistance : 10 mΩ max.
Insulation resistance : 1.000 MΩ min. at 500VDC
Dielectric strength :1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles
Contact bounce : 2 ms max.
Shock test : 50g - 11ms (IEC 68-2-27)
Vibrations : 10-500 Hz - 10g (IEC68-2-6)
Operating temperature : -40°C to +85°C
Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
Salt spray test : 96 hours (IEC 68-2-11)
Front panel sealing by two O-rings Flatted bush for precise orientation
Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated.
Epoxy sealed terminals
Splash-proof case
Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel thickness : 8 mm (.314) max. - 3 mm (.118) min.
Electrical life :- At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)

Additional Information

Device

Switch

Upgrade your control systems with the Apem 12146-2VX778 Toggle Switch. Featuring a durable metal lever and quick connect terminals, this ON-ON switch supports up to 15A, ensuring reliable performance for all your electrical needs. Experience seamless operation and enhanced safety in your projects today!
