12146X778

SKU: 12146X778

BRAND: Apem


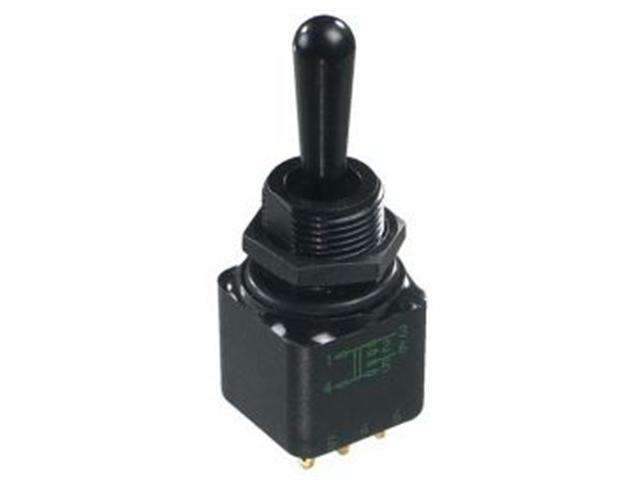

15A 250VAC Toggle Switch with Quick Connect Terminals, Metal Lever and Front Panel Sealing

Overview

Features



  • High Reliable Contacts
  • Pinned Lever
  • Double Shell Case
  • Compact Size
  • Black Finish
  • IP67 Panel Sealing
  • Accessories

Specification



Electrical Specifications

  • Max. Current/Voltage rating with resistive load : 4A 28VDC
  • Minimum load : 10mA 50mV, 10µA 5VDC; When used above 300mA 28VDC, the gold plating is removed on contact areas and is considered only as a protection against oxidation during storage.
  • Initial contact resistance : 10 mΩ max.
  • Insulation resistance : 1.000 MΩ min. at 500VDC
  • Dielectric strength
    • 1.000 Vrms 50 Hz min. between terminals
    • 2.000 Vrms 50 Hz min. between poles
    • 2.000 Vrms 50 Hz min. between terminals and frame
  • Contact bounce : 2 ms max.

Electrical life

  • At 4A 28VDC : 20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)
  • At Low Level (50mV 10mA)
    • 150.000 cycles (switches with 2 maintained positions)
    • 100.000 cycles (switches with 3 maintained positions)
    • 50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)

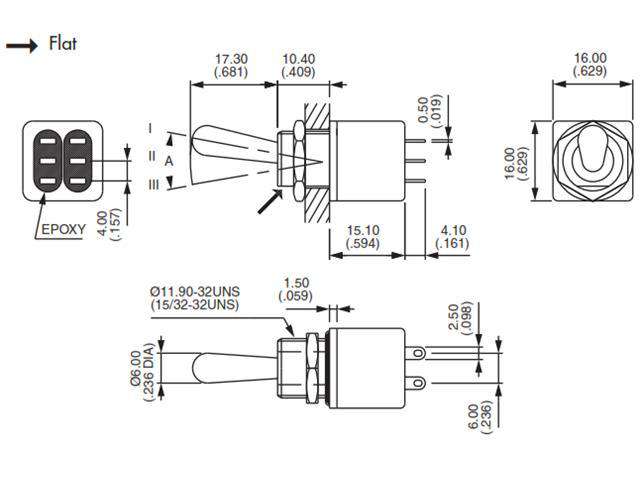

General Specifications

  • Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
  • Panel Thickness : 8 mm (.314) max. - 3 mm (.118) min.
  • Shock Test : 50g - 11ms (IEC 68-2-27)
  • Vibrations : 10-500 Hz - 10g (IEC68-2-6)
  • Operating Temperature : -40°C to +85°C
  • Humidity Test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
  • Salt Spray Test : 96 hours (IEC 68-2-11)
          Transition Style Momentary
          Actuator Style Toggle
          Termination Solder Lug
          Voltage Rating 28V
          Voltage Type DC
          Current Rating 4A
          Electrical Rating 4A 28VDC
          No.of Poles/Pins 2
