130E405032-E

SKU: 130E405032-E

BRAND: Metz Connect


Industrial Ethernet Pro RJ45 Connector Fully Shielded CAT6A 4 Pair Class Ea IDC Termination for Solid/Stranded Wire 26 - 22AWG 180° Cable Entry- 10,5mm MAX OD

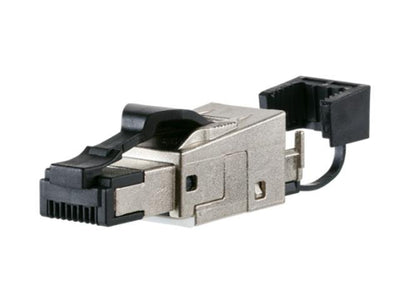

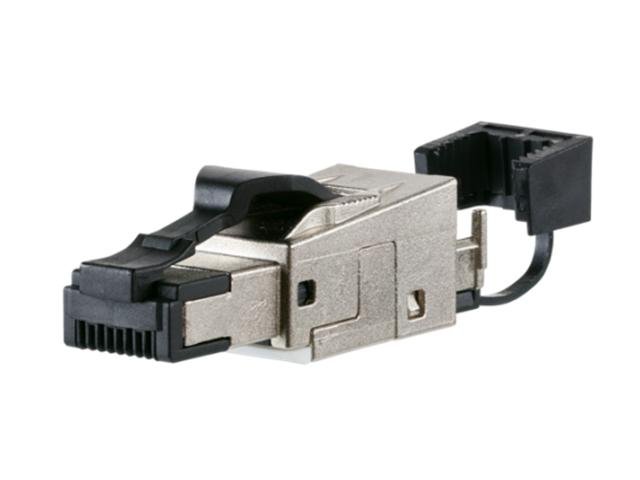

Industrial Ethernet Pro RJ45 Connector

Feature(s)

  • Cat.6A class EA RJ45 plug to be assembled in the field
  • Fully shielded and multi-port capable
  • Straight (180°) cable feed
  • Easy assembly - connection without special tools
  • Wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
  • Wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm
  • Transmission characteristics Cat.6A per ISO/IEC 11801 Ed.2.2:2011-06
  • Compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
  • Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
  • Degree of protection IP20
  • For cable jacket diameter from 5.5 to 10.5 mm
  • Zinc die-cast housing for industrial use consists of only 2 parts
  • Strain relief by latching clip directly on the stuffer cap
  • Protected locking hook
  • Reconnectable

Additional Information

Device Connector
Type Industrial | Ethernet | Pro | RJ45

-->
