Industrial Ethernet Pro RJ45 Connector Fully Shielded CAT6A 4 Pair Class Ea IDC Termination for Solid/Stranded Wire 26 - 22AWG 180 Degree Cable Entry- 10,5mm MAX OD (1962730000) (1132010000) (113202000)

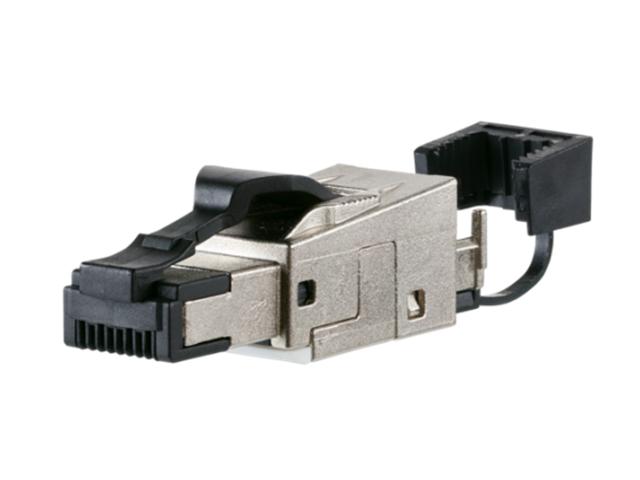

Industrial Ethernet Pro RJ45 Connector
Feature(s)
Cat.6A class EA RJ45 plug to be assembled in the field
Fully shielded and multi-port capable
Straight (180°) cable feed
Easy assembly - connection without special tools
Wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
Wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm
Transmission characteristics Cat.6A per ISO/IEC 11801 Ed.2.2:2011-06
Compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
Degree of protection IP20
For cable jacket diameter from 5.5 to 10.5 mm
Zinc die-cast housing for industrial use consists of only 2 parts
Strain relief by latching clip directly on the stuffer cap
Protected locking hook
Reconnectable
Specifications
Fields of application: Structured building cabling
MICE mechanical rating: M1
MICE ingress rating: I1
MICE climatic rating: C1
MICE electromagnetic rating: E2
Design: Plug
Shielding: Shielded
Transmission technology: Copper
Color: Black

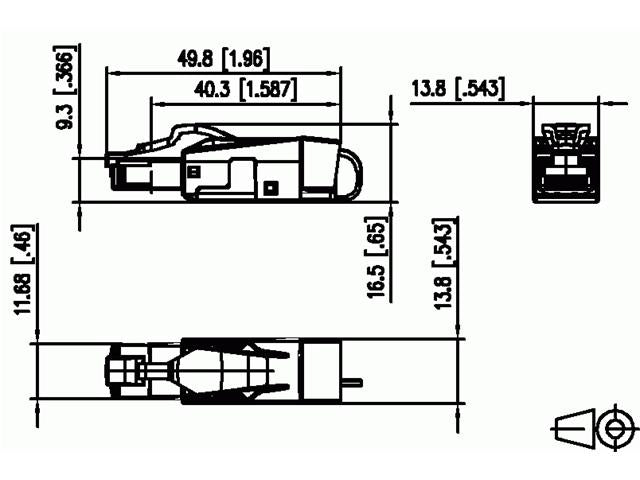

Dimensions (L × W × H): 49.8 × 13.8 × 16.5 mm (1.961 × 0.543 × 0.65 in.)
Field assembly capable: Yes
Labeling option: On housing
Marking option: By latching clip
Transmission Characteristics
ISO category: Cat 6A
ISO/IEC class: EA
TIA category: Cat 6A
Remote powering: Yes
PoE support: IEEE 802.3af
PoE+: IEEE 802.3at
UPoE: Yes
4PPoE: IEEE 802.3bt
HDBaseT support: Yes
Transmission rate: Up to 10 Gbit/s (IEEE 802.3an)
Connections / Interfaces
Interface 1: IDC connection
Interface 2: RJ45 plug
Ports on interface 2: 1
Equipped ports on interface 2: 1
Contacts interface 1: 8
Contacts interface 2: 8P/8C
Solid conductor range: AWG 26/1 to AWG 22/1
Solid conductor cross-section: 0.128–0.324 mm²
Solid conductor diameter: 0.409–0.643 mm
Stranded conductor range: AWG 27/7 to AWG 22/7
Stranded conductor cross-section: 0.111–0.355 mm²
Stranded conductor diameter: 0.457–0.762 mm
Max insulated core diameter: 1.6 mm (0.063 in.)
Cable sheath diameter: 5.5–9.5 mm (0.217–0.374 in.)
Cable outlet direction: 180°
Reconnectable: Yes, if cross section is greater or the same
Shield connection: Flexible contact spring
Electrical Characteristics
Current carrying capacity: Max. 1 A at 60 °C
Rated voltage: Max. 60 V DC
Contact resistance: Max. 20 mΩ
Insulation resistance: Min. 500 MΩ
Dielectric strength conductor-conductor: 1000 V DC
Dielectric strength conductor-shield: 1500 V DC
Mechanical Data
Mounting method: Snap-in function
Insertion/withdrawal force: Max. 20 N
Mating cycles: Min. 750
Latch mounting position: Top
Strain relief: Latching clip
Materials
Housing material: GD-Zn
Contact material: CuSn
Contact finish: Nickel-gold (Ni + Au)
Latch material: Plastics
Halogen free: Yes
Surface finish: Nickel (Ni)
RoHS compliant: Yes
Environmental Conditions
Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Storage note: Visual inspection after 500 hours ageing at 95 °C, report available on request
Upgrade your connectivity with the Industrial Ethernet Pro RJ45 Connector, designed for superior performance and easy assembly. With full shielding and compatibility for 10 GBit Ethernet, this robust connector supports both solid and stranded wire, ensuring reliable connections in demanding environments. Simplify your network setup while enjoying high-speed data transmission and exceptional durability.
