| Fields of Application |
Structured building cabling |
| MICE Mechanical Classification |
M1 |
| MICE Ingress Classification |
I1 |
| MICE Climatic Classification |
C1 |
| MICE Electromagnetic Classification |
E2 |

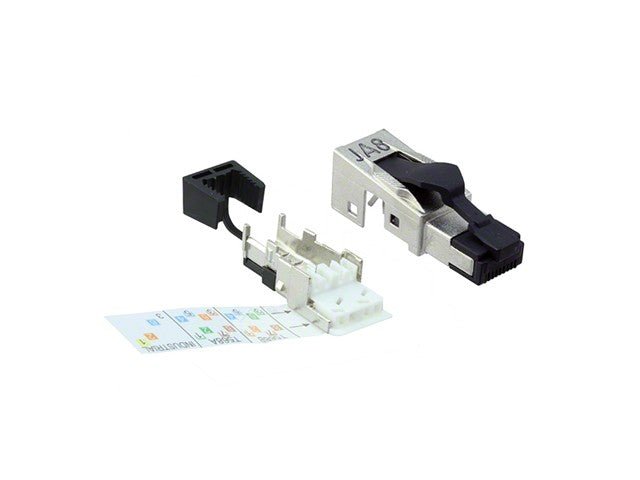

| Design |
Plug |
| Shielding |
Shielded |
| Transmission Technology |
Copper |
| Color |
Black |
| Length |
49.8 mm (1.961 in.) |
| Width |
13.8 mm (0.543 in.) |
| Height |
16.5 mm (0.65 in.) |
| Field Assembly |
Yes |
| Labeling Option |
On housing |
| Marking Option |
By latching clip |
| ISO Category |
6A |
| ISO/IEC Class |
EA |
| TIA Category |
6A |
| Remote Powering |
Yes |
| PoE |
IEEE 802.3af |
| PoE+ |
IEEE 802.3at |
| UPoE |
Yes |
| 4PPoE |
IEEE 802.3bt |
| HDBaseT Support |
Yes |
| Transmission Rate |
Up to 10 Gbit/s (IEEE 802.3an) |
| Connector Interface 1 |
IDC Connection |
| Connector Interface 2 |
RJ45 Plug |
| Number of Ports (Interface 2) |
1 |
| Equipped Ports (Interface 2) |
1 |
| Contacts (Interface 1) |
8 |
| Contacts (Interface 2) |
8P/8C |
| Solid Wire Range (AWG) |
AWG 26/1 to AWG 22/1 |
| Solid Wire Cross Section |
0.128 – 0.324 mm² |
| Solid Wire Diameter |
0.409 – 0.643 mm (0.016 – 0.025 in.) |
| Stranded Wire Range (AWG) |
AWG 27/7 to AWG 22/7 |
| Stranded Wire Cross Section |
0.111 – 0.355 mm² |
| Stranded Wire Diameter |
0.457 – 0.762 mm (0.018 – 0.030 in.) |
| Max Core Diameter (with Insulation) |
1.6 mm (0.063 in.) |
| Cable Sheath Diameter Range |
5.5 – 9.5 mm (0.217 – 0.374 in.) |
| Cable Entry/Exit |
180° |
| Reconnectibility |
Yes, if cross-section is greater or equal |
| Shield Connection |
Flexible contact spring |
| Current Carrying Capacity |
Max. 1 A at 60 °C |
| Rated Voltage |
Max. 60 V DC |
| Contact Resistance |
Max. 20 mΩ |
| Insulation Resistance |
Min. 500 MΩ |
| Dielectric Strength (Conductor-Conductor) |
1000 V DC |
| Dielectric Strength (Conductor-Shield) |
1500 V DC |
| Mounting Method |
Snap-in function |
| Insertion/Withdrawal Force |
Max. 20 N |
| Mating Cycles |
Min. 750 |
| Standard Latch Position |
Top |
| Strain Relief |
Latching clip |
| Housing Material |
GD-Zn |
| Contact Material |
CuSn |
| Contact Finish |
Ni + Au (Nickel-Gold) |
| Latch Material |
Plastics |
| Finish Material |
Ni (Nickel) |
| Halogen Free |
Yes |
| RoHS Compliance |
Compliant |
| Storage Temperature |
-40 °C to +85 °C (-40 °F to +185 °F) |
| Operating Temperature |
-40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature Note |
Visual inspection after 500 h aging at 95 °C (203 °F), report available on request |
| Particulate Ingress Protection |
IP2X |
| Liquid Ingress Protection |
IPX0 |
