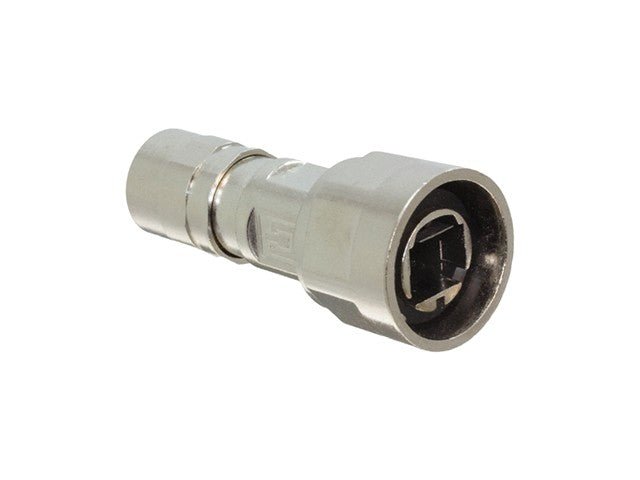

Industry IP67 V1 Bayonet Lock Metal Plug Housing
Illuminated Fluah Level Selector
Specifications
- Product Name: Metz Connect 1401015000ME
- Product Type: RJ45 Field Jack Insert (E-DAT Industry)
- Connector Standard: 8P8C (RJ45)
- Category / Class: Cat 5e / Class D
- Wiring / Pinout: T568A
- Application: Industrial Ethernet field jack for panel or housing mounting
- Shielding: Shielded
- Transmission Rate: Up to 1 Gb/s
- PoE / Remote Powering: PoE, PoE+, 4PPoE
- Connector Interface (Cable Side): IDC (Insulation Displacement Contact)
- Connector Interface (Device Side): RJ45 jack
- Conductor Cross-Section: AWG 26–22 (solid and stranded)
- Grounding: Integrated grounding tabs for equipotential bonding
- Insertion / Withdrawal Force: ≤ 30 N
- Mechanical Life: ≥ 750 mating cycles
- Housing Material: Zinc die-cast
- Insulation Resistance: ≥ 500 MΩ
- Dielectric Withstand Voltage: ≥ 1000 V DC (conductor-conductor), ≥ 1500 V DC (conductor-shield)
- Field Assembly: Yes, tool-less
- Operating Temperature Range: –40 °C to +70 °C
- Storage Temperature Range: –40 °C to +70 °C
- Mounting Method: Snap-in for IP67 industrial housings
- Ingress Protection (When Installed): Up to IP67 (depends on housing used)
- RoHS Compliance: Yes
- Country of Origin: Germany
Downloads
Additional Information
| Device |
Illuminated Fluah |
| Type |
Illuminated | Fluah | Level | Selector |
Discover the Metz Connect 1401015000ME, a robust IP67-rated RJ45 field jack insert designed for industrial Ethernet applications. With a transmission rate of up to 1 Gb/s and tool-less assembly, this metal plug housing ensures reliable performance and easy installation in harsh environments. Enjoy enhanced grounding and durability with its zinc die-cast design, making it the perfect choice for your networking needs.
