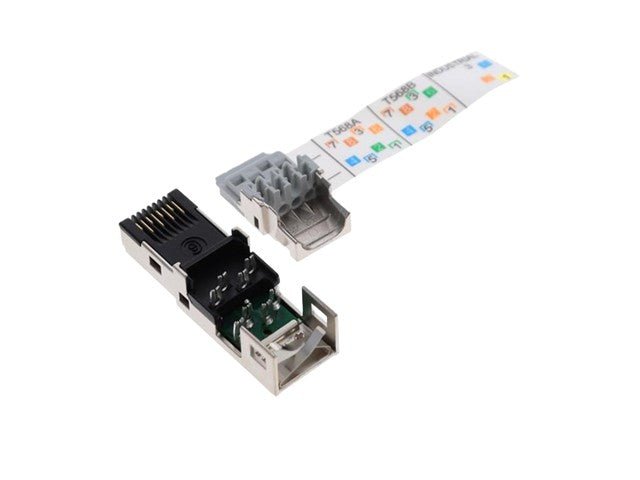

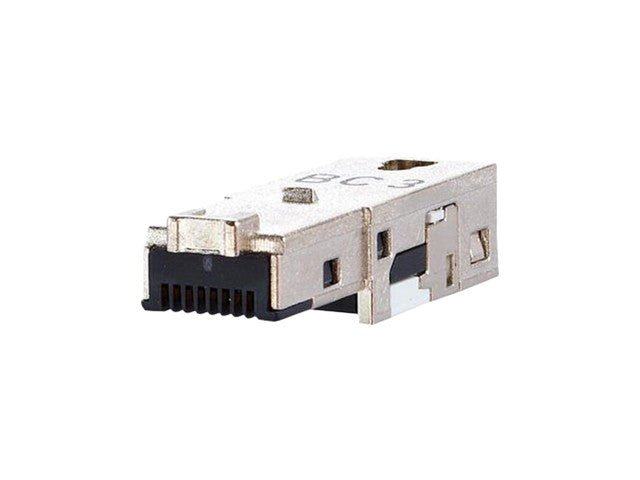

E-DAT Industry RJ45 Field plug Insert Cat.6 Class EA
Illuminated Flush Level Selector
Specifications
- Product Name: Metz Connect 1401400810‑I
- Product Type: Field-assembled RJ45 plug insert
- Connector Standard: 8P8C (RJ45)
- Ethernet Category: Cat6 / Class EA
- Application: Industrial Ethernet field plug
- Shielding: Shielded plug
- Mounting / Assembly: Field-assembleable into IP67 plug housing variants
- Connector Type: Plug (cable-mount)
- Transmission Technology: Copper Ethernet
- Transmission Rate: Up to 10 Gb/s (IEEE 802.3an)
- PoE Support: Yes — PoE / PoE+ / UPoE / 4PPoE
- Contact Material / Finish: Tin bronze with Ni + Au plating
- Cable Compatibility: AWG 26–22 solid & stranded
- Cable Jacket Diameter : 5.5–8.5 mm
- Contact Resistance (Max): 20 mΩ
- Insulation Resistance (Min): 500 MΩ
- Dielectric Withstand Voltage: ≥1000 V DC (conductor-conductor), ≥1500 V DC (conductor-shield)
- Mechanical Life: ≥750 mating cycles
- Insertion / Withdrawal Force: ≤30 N
- Housing Material: Zinc die-cast (GD-Zn)
- Operating Temperature Range: –40 °C to +70 °C
- Storage Temperature Range: –40 °C to +70 °C
- Ingress Protection (Plug Only) : IP2X for particulates, IPX0 for liquid (depends on housing)
- RoHS Compliance: Yes (lead-free)
- Country of Origin: Germany
Additional Information
| Device |
Flush |
| Type |
Illuminated | Flush | Level | Selector |
Enhance your industrial Ethernet setup with the Metz Connect 1401400810-I RJ45 Field Plug Insert. This Cat6 plug supports speeds up to 10 Gb/s, ensuring reliable, high-performance networking. Its rugged design and PoE compatibility make it perfect for demanding environments. Upgrade your connectivity with this durable, field-assembleable solution today!
