1401405012PI

Name: 1401405012PI - Communica [Part No: 1401405012PI]
Brand: Metz Connect
SKU: 1401405012PI
Price: 364.10 ZAR
Availability: InStock

SKU: 1401405012PI

BRAND: Metz Connect

In Stock
R 418.72_{(inc VAT)}
R 364.10_{(ex VAT)}

Collections: Connectors

Type: Interface Connectors

Category: RJ45 Connector

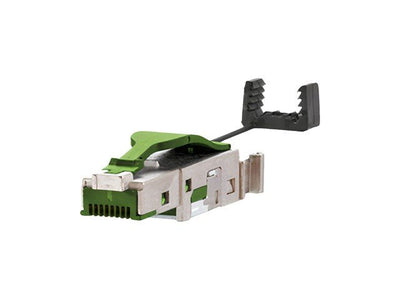

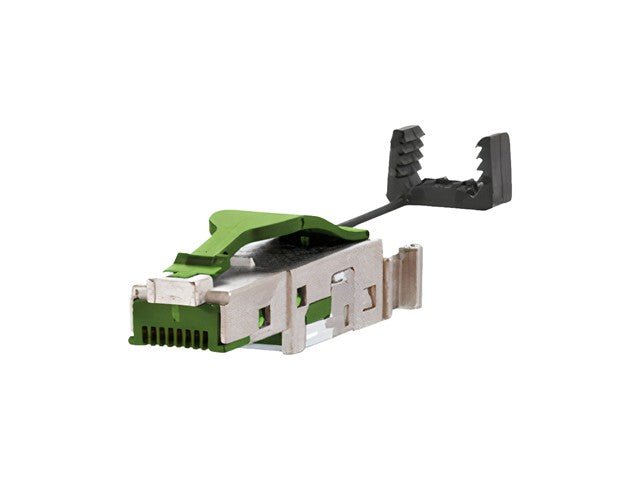

Profinet Pro Industrial RJ45 Connector Fully Shielded CAT5 2 Pair E-DAT IDC Termination for Solid/Stranded Wire 26 - 22AWG 180 Degree Cable Entry- 8,5mm MAX OD

Pro Industrial RJ45 Connector

Feature(s)

IDC Termination for Solid/Stranded
Wire 26 22AWG
180 Degree Cable Entry
8,5mm Max OD

Specifications

Multi-port Cat.5 plug to be assembled in the field
100 MBit suitable according to IEEE 802.3an
Suitable for Remote Powering (PoE and PoE plus) and HDBaseT

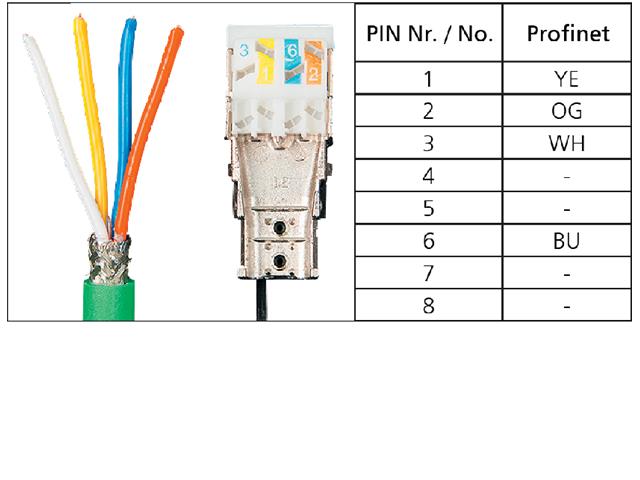

4-wire RJ45 plug for AWG 22 to be assembled in the field
Connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible
Solid copper wire diameter from 0.4 to 0.64 mm
Stranded copper wire diameter from 0.48 to 0.76 mm
Conductor diameter up to 1.6 mm
Cable jacket from 5.5 to 8.5 mm
Consists of only 2 parts
Easy assembly - connection without special tools
During mounting, the cable is mechanically fastened to the stuffer cap
Easy to actuate strain relief
Strain relief can be snapped on after assembly as color coding
Zinc die-cast housing for industrial use
Protected locking hook
Can be used as test plug on IP67 protected jacks of variants 1, 4, 5, 6 and 14

Downloads

Datasheet-1401405012PI

Additional Information

Device	Connector
Type	RJ45 \| Fully Shielded \| CAT5 \| 2 Pair E-DAT
