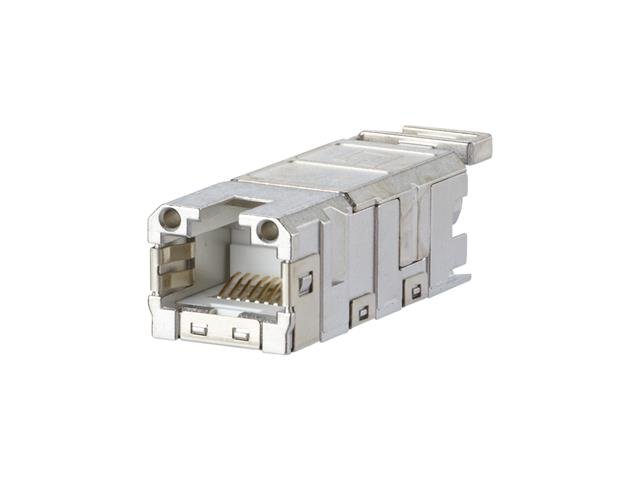

E-DAT Industrial RJ45 Profinet Field Jack Insert
Industrial RJ45 Profinet Field Jack Insert
Feature(s)
- RJ45 jack Cat.6 class EA to be assembled in the field and mounted in IP67 flange housings of variants 1, 4, 5 and 14
- use for ingress protection IP65 in combination with Universal test jack
- compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE, 4PPoE) and HDBaseT
- no special tools required
- AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible
- no protruding contours
- 2 x FS 2.8 mm grounding connection for equipotential bonding at cable end
- increased resistance to vibrations and shocks due to 4 springs on the shield plates
- consists of only 2 parts, easy to assemble
- solid zinc die-cast housing
- can be reconnected easily
- variants: pin assignment to T568A, T568B or PROFINET
Specifications
General Data
| Fields of application: |
|
| Mechanical measurement according to MICE: |
M1 |
| Ingress measurement according to MICE: |
I1 |
| Climatic measurement according to MICE: |
C1 |
| Electromagnetic measurement according to MICE: |
E2 |
| Design: |
Jack |
| Shielding: |
shielded |
| Transmission technology: |
Copper |
| Wiring: |
Profinet |
| Color: |
metallike |

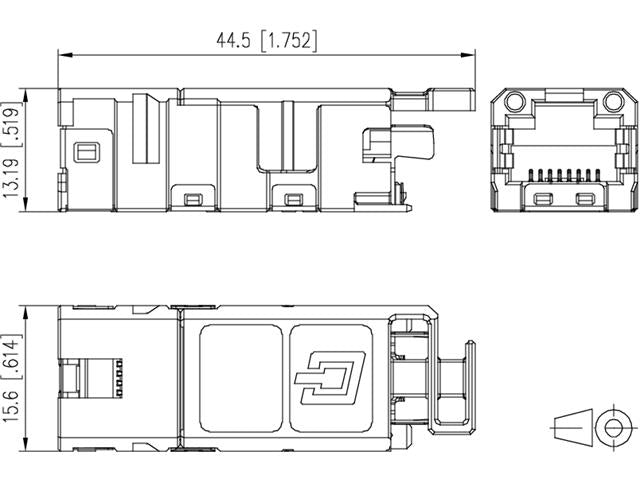

| Dimension [Length] (mm): |
44.5 mm |
| Dimension [Width] (mm): |
15.6 mm |
| Dimension [Height] (mm]: |
13.19 mm |
| Dimension [Length] (inch): |
1.752 in. |
| Dimension [Width] (inch): |
0.614 in. |
| Dimension [Height] (inch): |
0.519 in. |
| Field assembly ability: |
yes |
| Labeling option: |
on housing |
Transmission characteristics
| Category (ISO): |
6 |
| Class (ISO/IEC): |
EA
|
| Category (TIA): |
6 |
| Remote Powering: |
yes |
| PoE: |
IEEE 802.3af |
| PoE plus: |
IEEE 802.3at |
| UPoE: |
yes |
| HDBaseT: |
yes |
| Transmission rate up to 10 GBit: |
IEEE 802.3an |
Connections/interfaces
| Connector technology interface 1: |
IDC-connection |
| Connector technology interface 2: |
RJ45-jack |
| Number of ports interface 2: |
1 |
| Number of ports interface 2 equipped: |
1 |
| Number of positions/contacts interface 1: |
8P/8C |
| Number of positions/contacts interface 2: |
8P/8C |
| Conductor cross section solid wire [AWG] min-max: |
AWG 26/1 - AWG 22/1 |
| Conductor cross section solid wire [mm²] min-max: |
0,128 - 0,324 mm² |
| Conductor diameter solid wire [mm] min-max: |
0,409 - 0,643 mm |
| Conductor diameter solid wire [inch] min-max: |
0,016 - 0,025 in. |
| Conductor cross section stranded wire [AWG] min-max: |
AWG 26/7 - AWG 22/7 |
| Conductor cross section stranded wire [mm²] min-max: |
0,141 - 0,355 mm² |
| Conductor diameter stranded wire [mm] min-max: |
0,483 - 0,762 mm |
| Conductor diameter stranded wire [inch] min-max: |
0,019 - 0,03 in. |
| Core diameter (conductor with insulation) [mm max.]: |
1.6 mm |
| Core diameter (conductor with insulation) [inch max.]: |
0.063 in. |
| Cable access/outlet: |
180° |
| Reconnectibility: |
yes |
Electrical characteristics
| Current carrying capacity: |
max. 1 A |
| Contact resistance: |
max. 20 mOhm |
| Insulation resistance: |
min. 500 MOhm |
| Dielectric strength conductor-conductor (secondary) [V DC]: |
min. 1000 V DC |
| Dielectric strength conductor-shield [V DC]: |
min. 1500 V DC |
Mechanical data
| Mounting method: |
snap-in function |
| Insertion and withdrawal force: |
max. 30 N |
| Life - Number of mating cycles: |
min. 750 |
Position/mounting of latch
standard installation position: |
top |
| strain relief: |
with cable tie, attached to module |
Materials and material properties
| Material - Housing: |
GD-Zn (zinc die-cast) |
| Material - Insulation displacement contacts: |
CuNi2Si |
| Material - Finish of insulation displacement contacts: |
Sn (tin) |
| Material - Contact: |
Spring steel |
| Material - Contact finish: |
Ni + Au (nickel-gold) |
| Halogen free: |
yes |
| RoHS: |
compliant |
Downloads
Additional Information
| Device |
Jack Insert |
| Type |
Industrial | RJ45 | Profinet | Field |
Upgrade your industrial Ethernet connections with the 1401900810MI RJ45 Profinet Field Jack Insert. Designed for easy field assembly and IP67 protection, it supports 10 GBit Ethernet and PoE technologies, ensuring reliable performance in demanding environments. With its robust zinc die-cast housing and vibration resistance, this jack insert guarantees durability and seamless reconnections, making it the perfect choice for your networking needs.
