1418N4SSO10

SKU: 1418N4SSO10

BRAND: Hammond

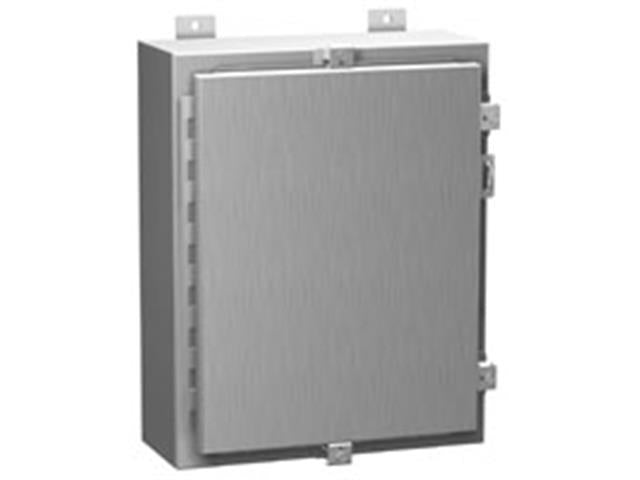

Type 4X Stainless Steel 304SS Wallmount Enclosure IP66 1 Door 42 x 30 x 10 mm

Features

  • Formed 14 gauge 304 or 316 stainless steel
  • Smooth, continuously welded seams without knockouts, cutouts or holes
  • Door stiffeners are provided in the larger enclosures for extra rigidity
  • Welded brackets provide for enclosure mounting
  • Formed lip on door and enclosure excludes flowing liquids and contaminants
  • Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
  • Door is secured with easily operated stainless steel clamps
  • Provision for padlocking
  • Seamless poured-in place gasket
  • A removable 12 gauge inner panel is included
  • Collar studs are provided for mount­ing inner panels
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure
  • A literature pocket is provided for the inside of the door
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem

Specifications

Product Type Wall Mount Enclosure
Series 1418 N4 SS
Body Material 304 Stainless Steel
External Dimensions 42 x 30 x 10 mm
External Length 42 mm
External Width 30 mm
External Height 10 mm
Internal Length 39 mm
Internal Width 27 mm
Protection Features Protection where Equipment may be Hosed Down or otherwise be Very Wet, or Inspecific Applications where Corrosion is a Serious Problem
