142M1D11020

SKU: 142M1D11020

BRAND: Metz Connect

In Stock
R 1,248.90_{(inc VAT)}
R 1,086.00_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M12 Standard Sensor/Actuator Double-Ended Cordset

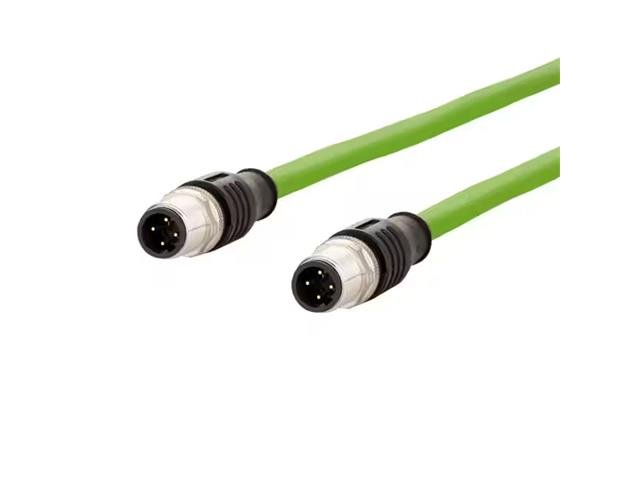

Cordset Shielded M12 D-Coded Male Straight 4 Pole – Male Straight 4 Pole 2x2 AWG22 - 2M PUR Cable (0985 S4742 100/2M)

M12 D-Coded Male Shielded Cordset

Specifications

Connector A	M12 Plug
Connector A LEDs	0
Connector A Pins	4
Connector B	M12 Plug
Connector B LEDs	0
Connector B Pins	4
Connector Coding A	D-Coded
Connector Coding B	D-Coded
Conductors	4
Connector Orientation	Straight
Cross Section (AWG)	22 AWG
Length	2 m
Operating Temperature Max.	90 °C
Operating Temperature Min.	-30 °C
Protection Rating	IP6X IPX7
Rated Current	4 A
Rated Voltage	48 V
Sensor Cable Colour	Green
Series	142M
Sheathing	PUR
Shielding	Shielded
Standards Met	DIN EN 50288-2-1 DIN EN 60332-1-2 DIN EN 61076-2-101

Downloads

Datasheet - 142M1D11020

Additional Information

Device	Cordset
Type	M12 \| D-Coded \| Male \| Shielded
