1455C801BK

SKU: 1455C801BK

BRAND: Hammond

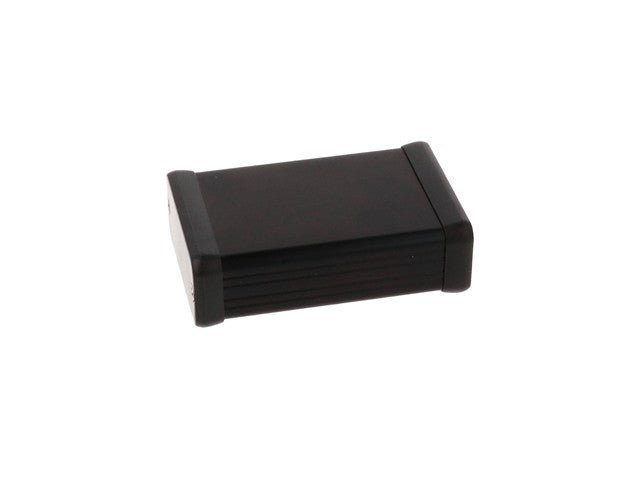

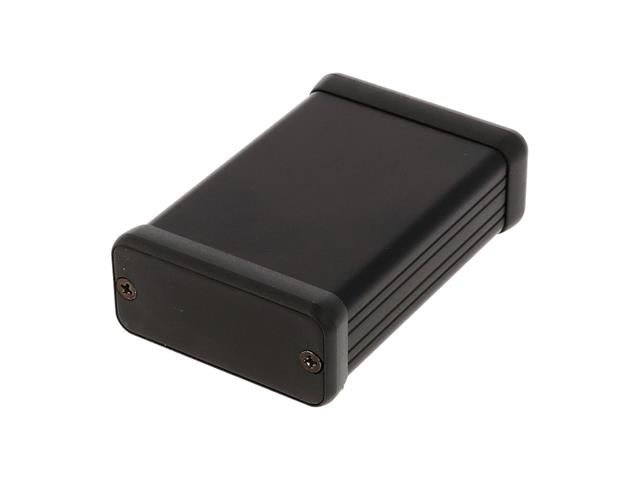

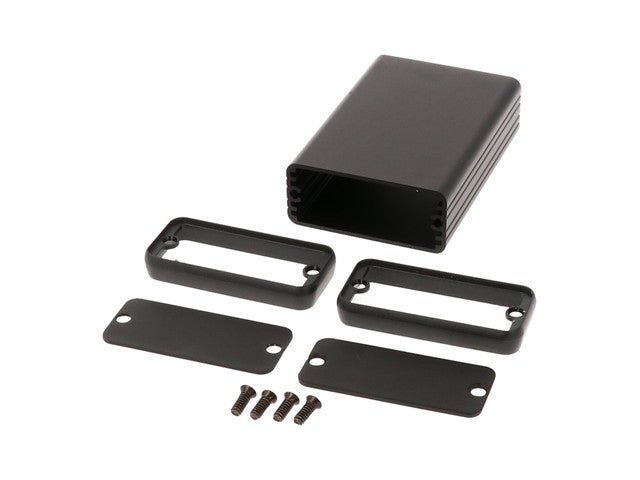

Enclosure Aluminium Black Anodized 80x54x23mm Metal End Plates

Aluminium Black Anodized Enclosure

Feature(s)

  • Designed to house P.C. boards or for equipment interfacing.
  • Sized for standard Eurocards.
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
  • Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”

Specifications

Size L x W x H 3.15 in x 2.13 in x 0.91 in
(80 mm x 54 mm x 23 mm)
Shipping Weight 0.15 lbs (0.07 kg)
Packaging Type shrink wrap
Material Aluminum (Extruded)
Color Black
IP Rating IP54
Product Category Enclosures
Type PC Board Enclosure
Max. P.C. Board Length (mm) 79
Max. P.C. Board Width (mm) 50

Downloads

Additional Information

Device Enclosure
Type Aluminium | Black | Anodized
