1455CF1201BK

SKU: 1455CF1201BK

BRAND: Hammond

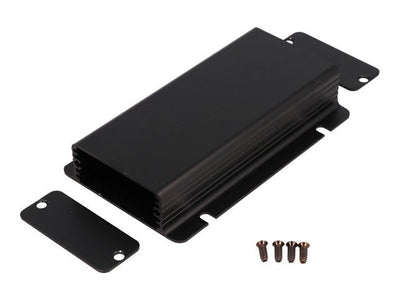

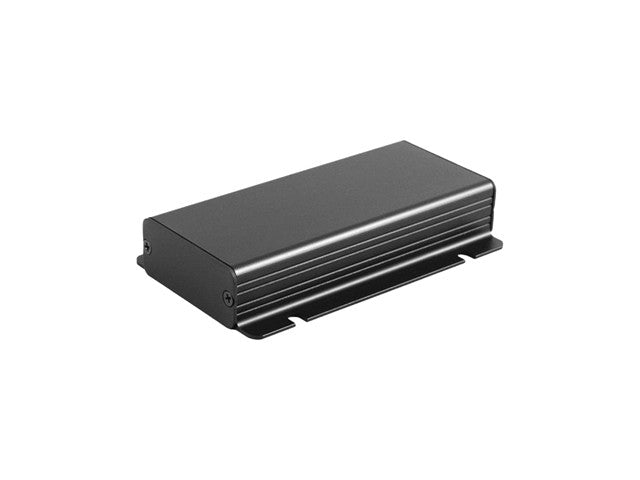

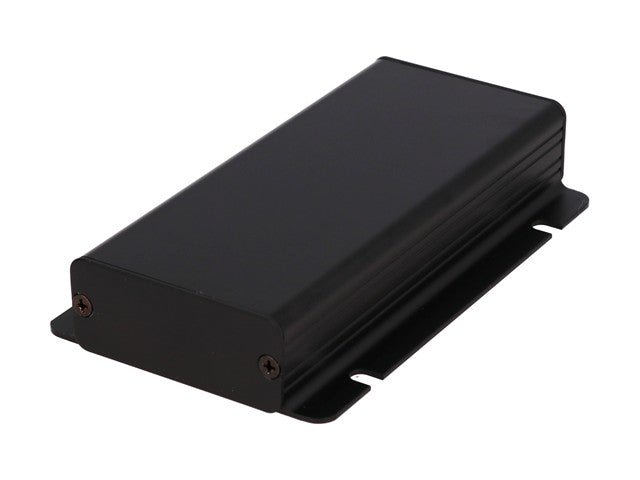

Extruded Aluminium Enclosure with Integrated Flange 120x54x23mm - Aluminium End Plates

Extruded Aluminium Enclosure

Feature(s)

  • Designed to house P.C. boards or for equipment interfacing.
  • Integrated slotted flanges allow for easy wall mounting.
  • Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.
  • P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).

Specifications

Size L x W x H 4.75 in x 2.13 in x 0.91 in
(121 mm x 54 mm x 23 mm)
Shipping Weight 0.22 lbs (0.10 kg)
UNSPSC 39121301
UPC 623980563060
REACH Compliant Yes
RoHS Compliant Yes
Packaging Type shrink wrap
Material Aluminum (Extruded)
Color Black
IP Rating IP54
Product Category Enclosures
Type PC Board Enclosure
Max. P.C. Board Length (mm) 119
Max. P.C. Board Width (mm) 50

Downloads

Additional Information

Device Enclosure
Type Extruded | Aluminium
