1455J1201BK

SKU: 1455J1201BK

BRAND: Hammond

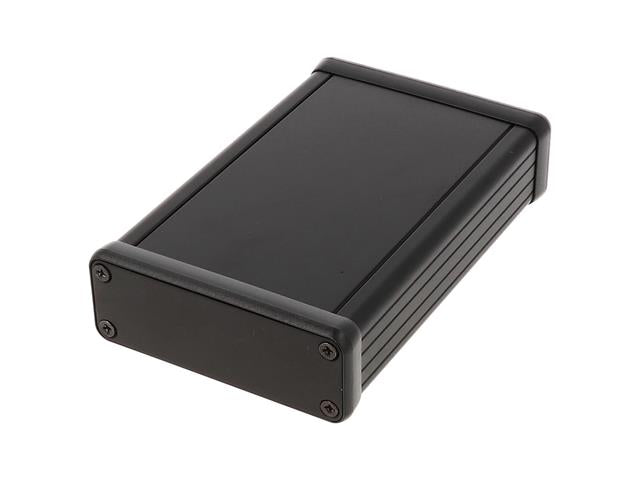

Extruded Aluminium Enclosure Black Anodized 120 x 78 x 27mm Metal End Plates

Extruded Aluminium Enclosure Black Anodized

Feature(s)

  • Designed to house PC boards or for equipment interfacing.
  • PC boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminum with a minimum thickness of 0.06” (1.5 mm).
  • Many sizes include a removable sliding plate.

Specifications

Size L x W x H 4.72 in x 3.07 in x 1.06 in
(120 mm x 78 mm x 27 mm)
Shipping Weight 0.38 lbs (0.17 kg)
Packaging Type shrink wrap
Material Aluminum (Extruded)
Color Black
IP Rating IP54
Product Category Enclosures
Type PC Board Enclosure
Max. P.C. Board Length (mm) 119
Max. P.C. Board Width (mm) 74

Downloads

Additional Information

Device Enclosure
Type Extruded | Aluminium | Black | Anodized | Metal End Plates
Dimensions 120 x 78 x 27mm
Base Colour Black
Degree of Protection Extruded Aluminium Enclosure Black Anodized 120 x 78 x 27mm Metal End Plates
