1455J1201BU

SKU: 1455J1201BU

BRAND: Hammond

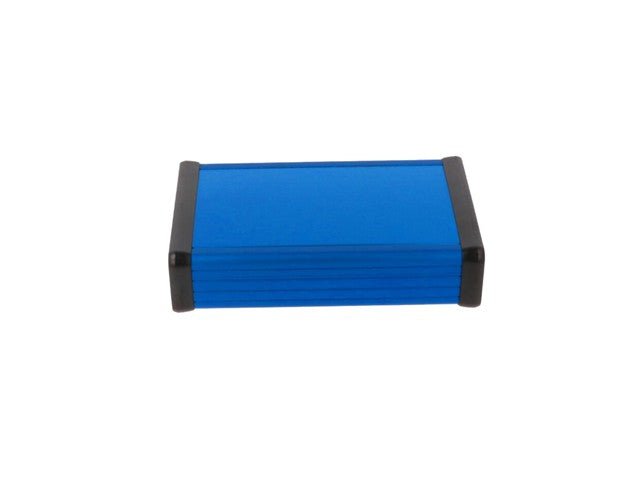

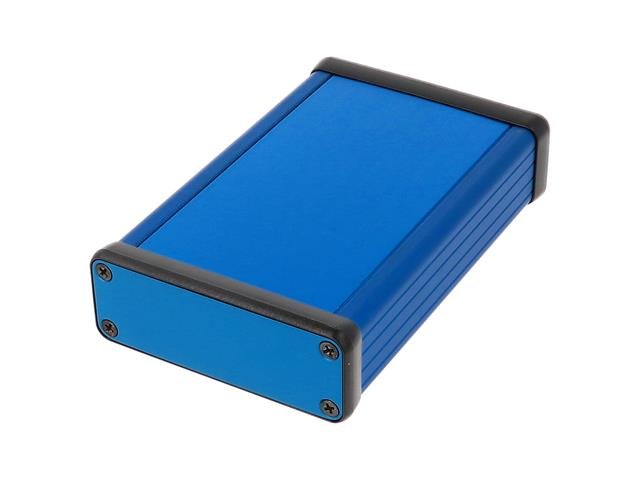

Extruded Aluminium Enclosure Blue Anodized 120 x 78 x 27.01 mm Metal End Plates. IP54

Features

  • Designed to house P.C. boards or for equipment interfacing
  • Sized for standard Eurocards
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm)

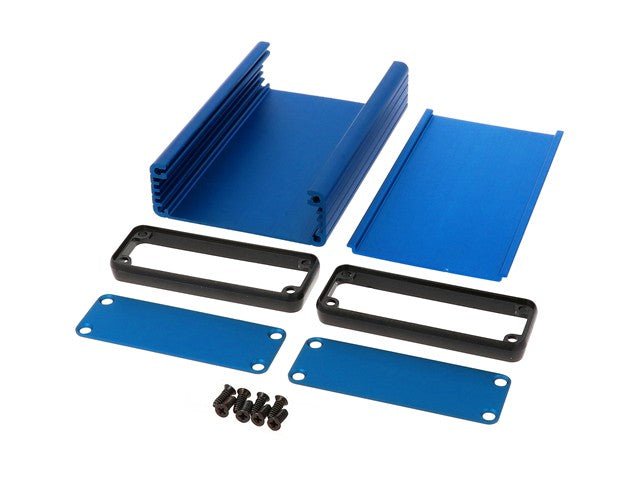

  • Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”

Specifications

Product Type PC Board Enclosure
Series 1455
Body Material Extruded Aluminium
Bezel Material Polycarbonate
External Dimensions 120 x 78 x 27.01 mm
External Length 120 mm
External Width 78 mm
External Height 27.01 mm
Colour Blue
IP Rating IP54
Lid Colour Blue
