1455N2201

SKU: 1455N2201

BRAND: Hammond

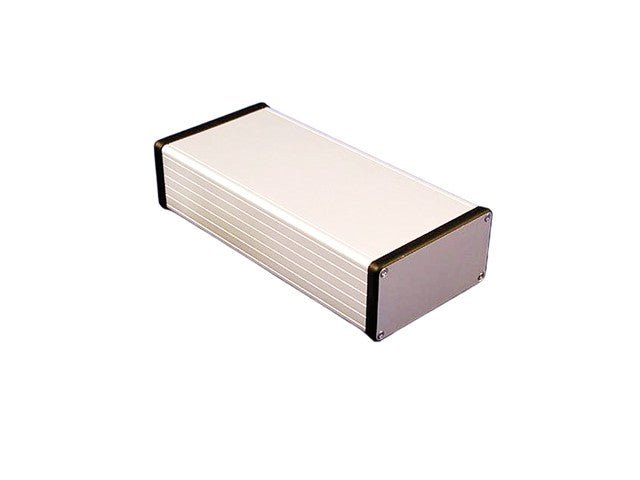

Aluminium Extruded Enclosure 220 x 103 x 53 mm. IP54

Features

  • Designed to house P.C. boards or for equipment interfacing
  • Sized for standard Eurocards
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm)
  • Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”

Specifications

Product Type PC Board Enclosure
Series 1455
Body Material Extruded Aluminium
Bezel Material Polycarbonate
External Dimensions 220 x 103 x 53 mm
External Length 220 mm
External Width 103 mm
External Height 53 mm
Colour Clear
IP Rating IP54
Lid Colour Clear
