1455NHD1601

SKU: 1455NHD1601

BRAND: Hammond

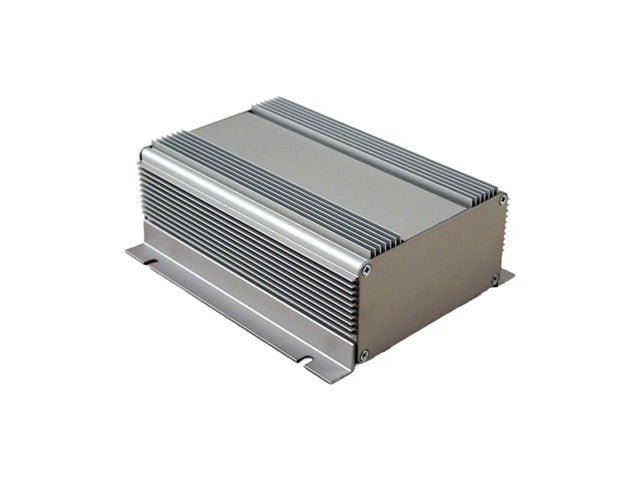

160 x 111 x 60.76 mm Extruded Heat Dissipating Clear Anodized Aluminium Enclosure with Metal End Plates

Features

  • Designed to house P.C. boards or equipment
  • Easy wall mounting or shelf mounting with two removable flanges
  • Sized for standard eurocard P.C. boards
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body

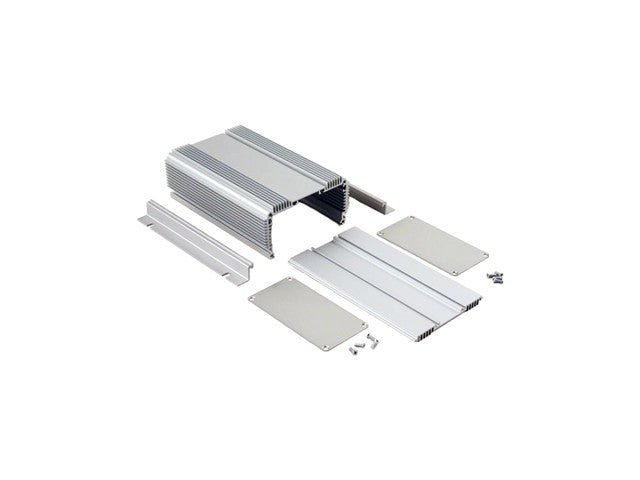

  • Two piece body - with easily removable belly plate for easy access to top interior of enclosure
  • Extruded body & aluminum endplates with a choice of either clear or black anodized finish
  • Includes eight (8) assembly screws - either clear or black assembly screws to match enclosure panels & body.

Specifications

Product Type Heat Dissipating Enclosure
Series 1455HD
Body Material Extruded Aluminium
External Dimensions 160 x 111 x 60.76 mm
External Length 160 mm
External Width 111 mm
External Height 60.76 mm
Colour Clear
Lid Colour Clear
