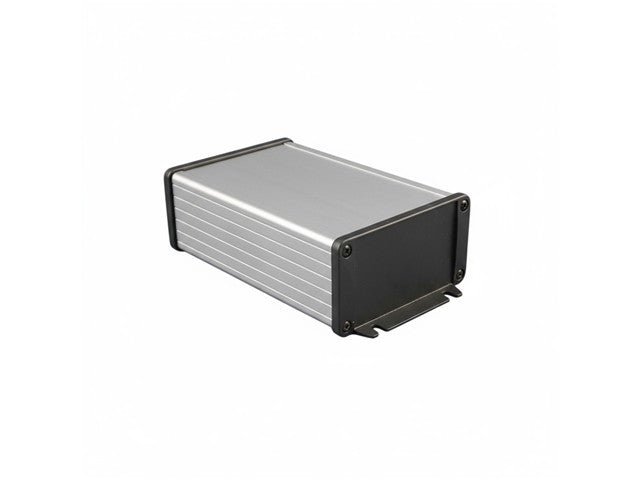

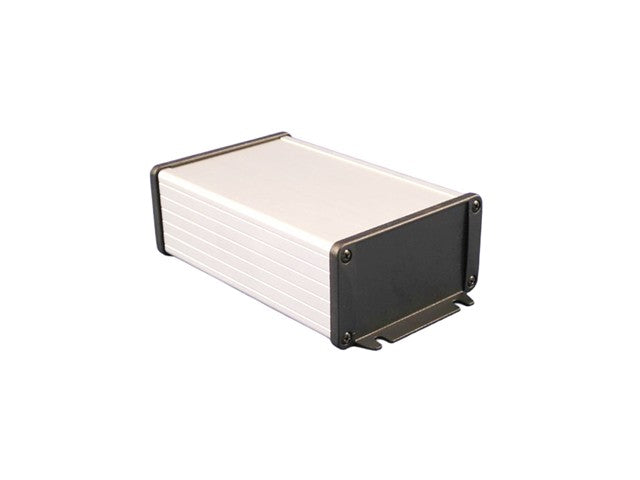

Aluminium Diecast Enclosure 192.15 x 107.95 x 50.11 mm
Features
- Watertight - heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing
- Sized for standard Eurocards

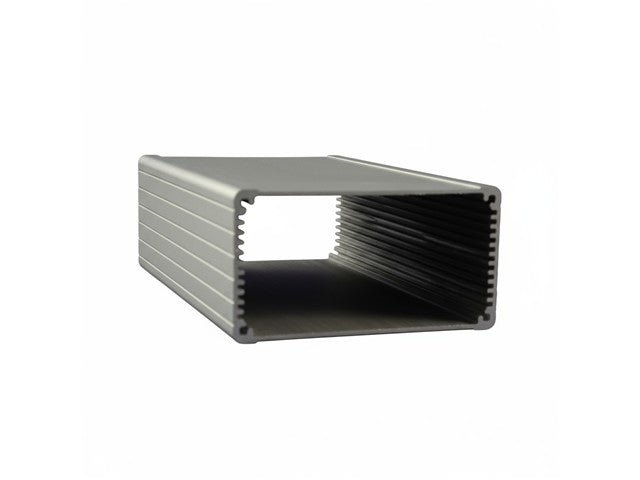

- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
- Rugged body constructed from one piece, extruded aluminum with a minimum thickness of .06” (1.5 mm)
- Extruded aluminum body includes a recessed area for labels or membrane keypad
- End panels are rugged - yet easy to machine - diecast aluminum with full perimeter self-adhesive gaskets
- Designed to meet IP65
- Choice of two versions - end panels without flange or with flange (for shelf or wall mounting)
Specifications
Product Type |
Water-Tight Enclosure |
Series |
1457 |
Body Material |
Extruded Aluminium |
Gasket Material |
Polyethylene Foam |
External Dimensions |
192.15 x 107.95 x 50.11 mm |
External Length |
192.15 mm |
External Width |
107.95 mm |
External Height |
50.11 mm |
Internal Dimensions |
160 x 84 x 44.1 mm |
Internal Length |
160 mm |
Internal Width |
84 mm |
Internal Height |
44.1 mm |
Colour |
Clear |
IP Rating |
IP65 |
Lid Colour |
Clear |
Protection Features |
Water-Tight |
