SKU: 15024A10S-E

BRAND: Metz Connect

OpDAT REGpro Fiber Optic Front Cover come with 12xST SM+MM for use with 15024A series DIN Rail Housings

Fibre Splice Tray and Crimp Splice Holder


  • splice distributor for TH35 rail without front cover
  • gray housing
  • with or without splice tray with crimp splice holder (CSH) for up to 12 splices
  • installation of two shrink splice holders (SSH)on splice tray is possible
  • with fiber reservoir
  • custom-labeled identification strips
  • fastening on top hat rail by means of very sturdy top hat rail holder
  • various mounting versions on rail
  • for different front plates 3RU/7HP
  • cable feed from top or bottom, straight or inclined, with M20 cable gland (up to 2 possible)

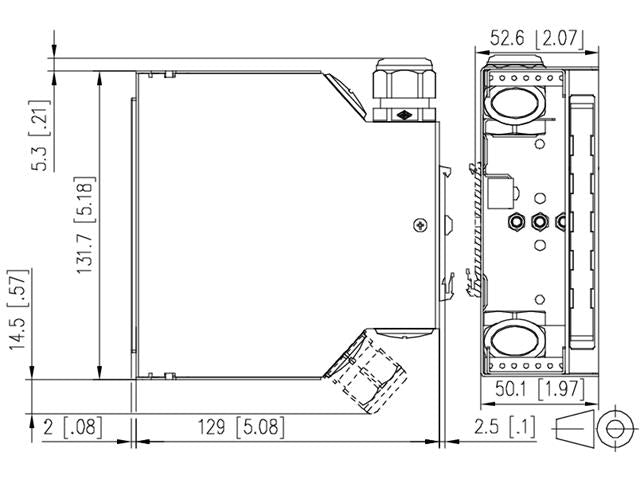

  • width: 50 mm, height: 128 mm, depth: 132.5 mm (from rail, without adapters)
  • feed of pre-terminated cables is possible
  • one cable gland M20 with strain relief included in the delivery
  • housing cover fastening by means of just one screw
  • variants: with and without splice tray
  • Please note: not all front plates 3RU/7HP available on the market can be used for OpDAT REGpro. If pre-ter


Additional Information

Device Tray and Crimp Splice Holder
Type Fibre Splice
