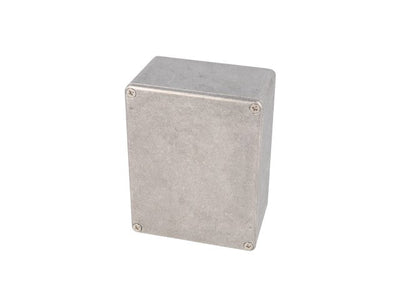

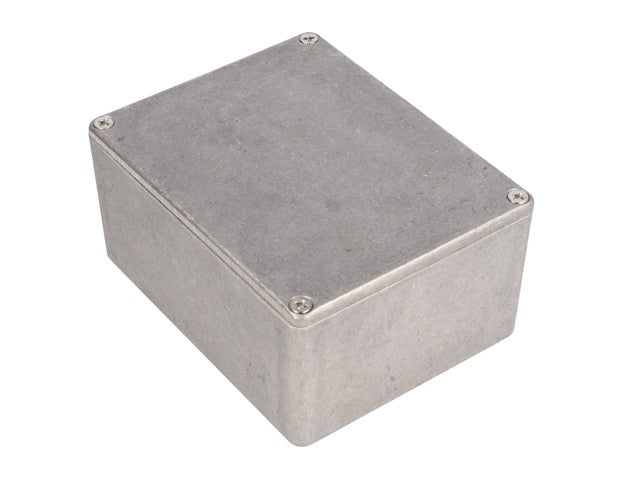

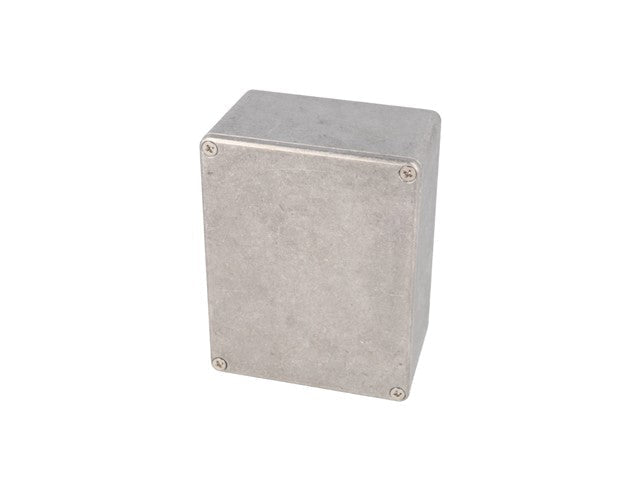

Enclosure Diecast Aluminium Unpainted 115 x 90 x 55.1 mm (With Lid) IP54
Features
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Available in natural vibra finish OR in light textured, black powder paint
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance
- Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. When water-tight gaskets are installed

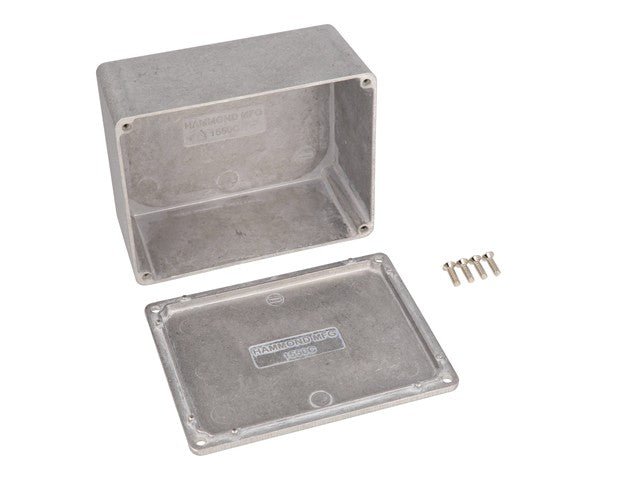

- Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes
- Designed to meet IP 54 without a gasket or IP66 with a gasket. IP67 upgraded gaskets are available
- No internal ribs for easy installation of connectors without interference or additional milling
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
- Add 0.16" (4 mm) to enclosure depth for lid
Specifications
| Product Type |
Diecast Aluminium Enclosure |
| Series |
1550 |
| Body Material |
Diecast Aluminium |
| External Dimensions |
115 x 90 x 55.1 mm (With Lid) |
| External Length |
115 mm |
| External Width |
90 mm |
| External Height |
55.1 mm (With Lid) |
| Internal Dimensions |
108.85 x 83.85 x 51.80 mm |
| Internal Length |
108.85 mm |
| Internal Width |
83.85 mm |
| Internal Height |
51.80 mm |
| Colour |
Natural |
| IP Rating |
IP54 |
| Lid Colour |
Natural |
| Protection Features |
Protection against Access of Dust and Splashing Water |
| Shielded |
Yes |
