1550G

SKU: 1550G

BRAND: Hammond

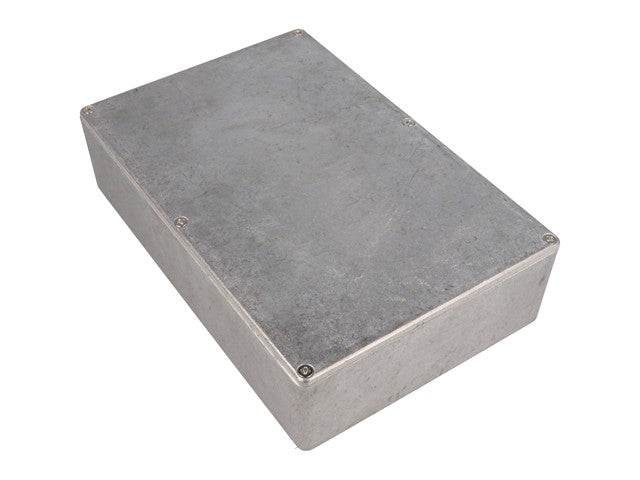

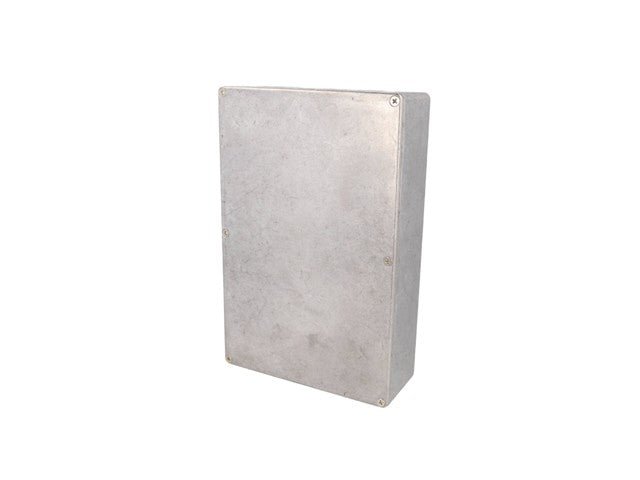

Enclosure Diecast Aluminium Unpainted 222 x 146 x 55.1 mm (With Lid) IP54

Features

  • Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
  • Available in natural vibra finish OR in light textured, black powder paint
  • Unpainted version is vibra finished for a smooth surface with no sharp edges
  • Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance
  • Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.  When water-tight gaskets are installed

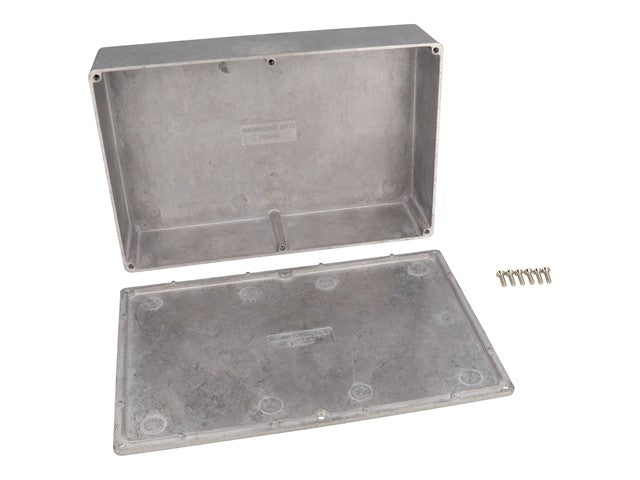

  • Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes
  • Designed to meet IP 54 without a gasket or IP66 with a gasket.  IP67 upgraded gaskets are available
  • No internal ribs for easy installation of connectors without interference or additional milling
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
  • Add 0.16" (4 mm) to enclosure depth for lid

Specifications

Product Type Diecast Aluminium Enclosure
Series 1550
Body Material Diecast Aluminium
External Dimensions 222 x 146 x 55.1 mm (With Lid)
External Length 222 mm
External Width 146 mm
External Height 55.1 mm (With Lid)
Internal Dimensions 215.46 x 127.46 x 51.10 mm
Internal Length 215.46 mm
Internal Width 127.46 mm
Internal Height 51.10 mm
Colour Natural
IP Rating IP54
Lid Colour Natural
Protection Features Protection against Access of Dust and Splashing Water
Shielded Yes
