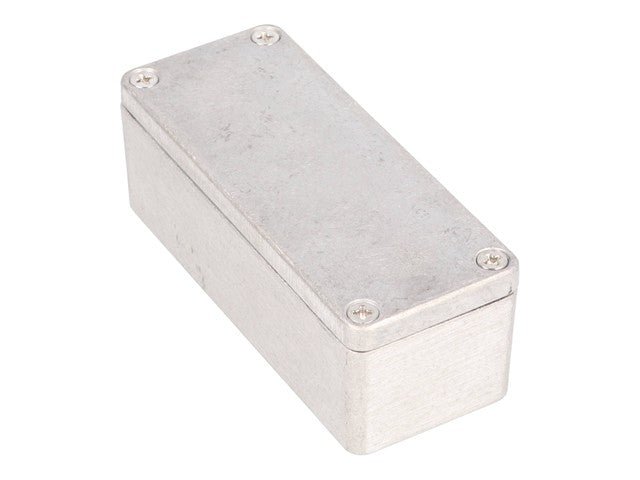

Enclosure Diecast Aluminium 90x36x25mm Watertight IP66
Enclosure Diecast Aluminium
Feature(s)
- Very economical - thick wall - diecast aluminum - watertight electronic instrument enclosure.
- Rugged, diecast aluminum alloy (tough - yet easy to machine),

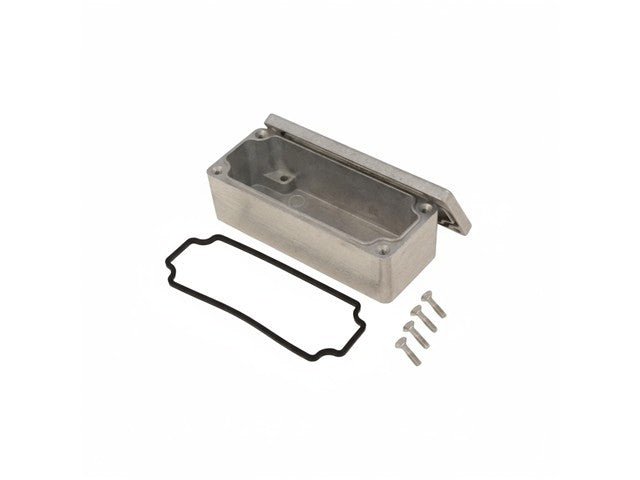

- Two piece “tongue & groove” construction for protection against access of dust and water.
- Ideal for repetitive opening and closing.
- Easy to wall mount using “through box - blind hole” construction (on all sizes except: 1550Z102, 1550Z115 & 1550Z120). Access to blind holes is outside of gasket ring for superior protection (see photo features below).
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied to the entire enclosure (inside & out).
- Lid secured with either two, four or six (count varies with size) stainless steel, Philips head, counter sunk, machine screws - into factory tapped holes.
- Lid screws are outside the gasket protection area to eliminate the need for “O” rings on the screws.
- On six sizes (the 1550Z107, 1550Z108, 1550Z116, 1550Z117, 1550Z137 & 1550Z139) lid screws are self captivating. The lid holes are slightly undersized & threaded with the first installation of the self tapping - lid screws (see photos). Enclosure holes are pre-tapped.
- Designed to meet IP66 (NEMA 1, 4, 4X, 12 & 13 ratings. Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove
Specifications
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Watertight |
Protect your electronics with the 1550Z102 diecast aluminum enclosure, designed for durability and watertight integrity (IP66). Its rugged build and easy access make it ideal for frequent use, ensuring your devices stay safe from dust and moisture. Perfect for wall mounting, this enclosure combines practicality with a sleek finish, providing reliable protection for your projects.
