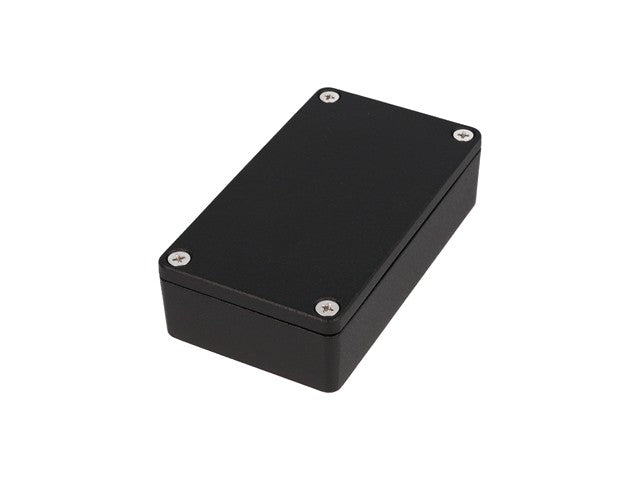

Watertight Diecast Aluminium Enclosure Black 115.40 x 65.4 x 30.4 mm (With Lid) Watertight IP66
Features
- Very economical - thick wall - diecast aluminum - watertight electronic instrument enclosure
- Rugged, diecast aluminum alloy (tough - yet easy to machine),

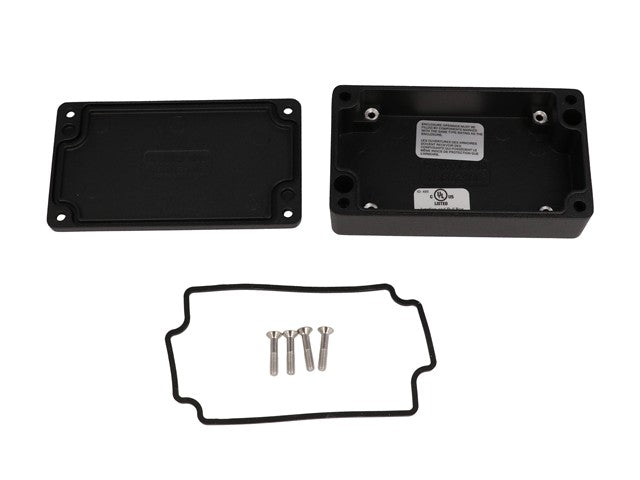

- Two piece “tongue & groove” construction for protection against access of dust and water
- Ideal for repetitive opening and closing
- Easy to wall mount using “through box - blind hole” construction. Access to blind holes is outside of gasket ring for superior protection (see photo features below)
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied to the entire enclosure (inside & out)
- Lid secured with either two, four or six (count varies with size) stainless steel, Philips head, counter sunk, machine screws - into factory tapped holes
- Lid screws are outside the gasket protection area to eliminate the need for “O” rings on the screws
- Lid screws are self captivating. The lid holes are slightly undersized & threaded with the first installation of the self tapping - lid screws (see photos)). Enclosure holes are pre-tapped

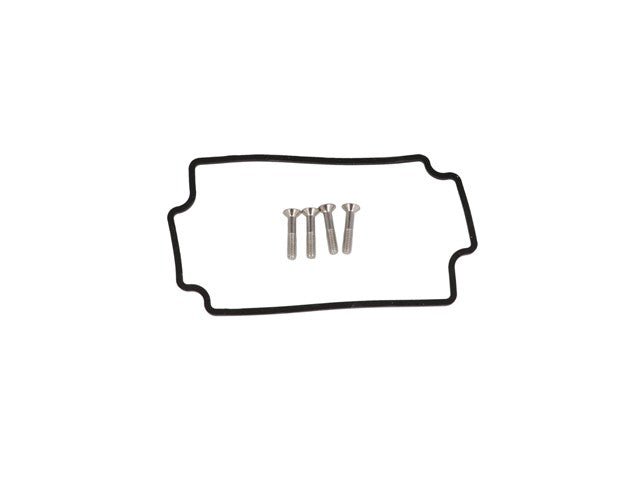

- Designed to meet IP66 (NEMA 1, 4, 4X, 12 & 13 ratings. Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove
- North American Mark of Safety - cUL & UL listed. Certified to NEMA 4X standards - File #E71073
- No internal ribs for easy installation of connectors without interference or additional milling
Specifications
| Product Type |
Water-Tight Enclosure |
| Series |
1550Z |
| Body Material |
Diecast Aluminium |
| Gasket Material |
Silicone |
| External Dimensions |
115.40 x 65.4 x 30.4 mm (With Lid) |
| External Length |
115.4 mm |
| External Width |
65.4 mm |
| External Height |
30.4 mm (With Lid) |
| Internal Dimensions |
108.22 x 58.22 x 25.20 mm |
| Internal Length |
108.22 mm |
| Internal Width |
58.22 mm |
| Internal Height |
25.20 mm |
| Colour |
Black |
| IP Rating |
IP66 |
| Lid Colour |
Black |
| Protection Features |
Protection against Access of Dust and Water |
