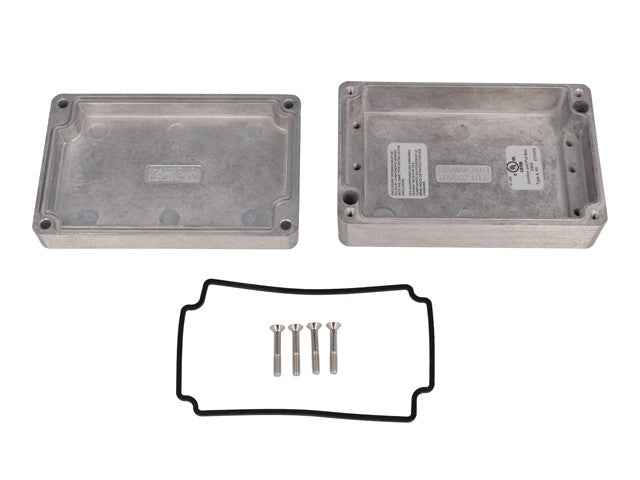

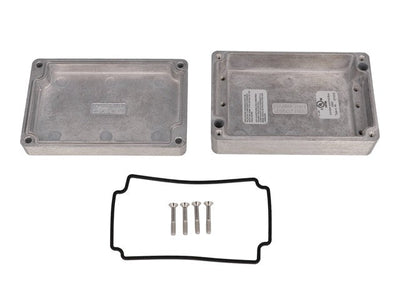

Enclosure Diecast Aluminium 125.4x80.4x25.2mm Watertight IP66
Enclosure Diecast Aluminium
Feature(s)
- Very economical - thick wall - diecast aluminum - watertight electronic instrument enclosure.
- Rugged, diecast aluminum alloy (tough - yet easy to machine),
- Two piece “tongue & groove” construction for protection against access of dust and water.
- Ideal for repetitive opening and closing.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Blackversion is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied to the entire enclosure (inside & out).
- Lid secured with either two, four or six (count varies with size) stainless steel, Philips head, counter sunk, machine screws - into factory tapped holes.
- Lid screws are outside the gasket protection area to eliminate the need for “O” rings on the screws.
- lid screws are self captivating. The lid holes are slightly undersized & threaded with the first installation of the self tapping - lid screws (see photos)). Enclosure holes are pre-tapped.
- Designed to meet IP66 (NEMA 1, 4, 4X, 12 & 13 ratings. Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
- North American Mark of Safety - cUL & UL listed. Certified to NEMA 4X standards - File #E71073
- No internal ribs for easy installation of connectors without interference or additional milling.
Specifications
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Diecast Aluminium |
Protect your electronics with the 1550Z107 diecast aluminum enclosure, featuring a watertight IP66 rating for ultimate durability. Its rugged design ensures reliable performance, while the smooth, powder-coated finish adds a touch of style. Ideal for repetitive access, this economical enclosure is perfect for safeguarding sensitive instruments in any environment.
