BRAND: Hammond

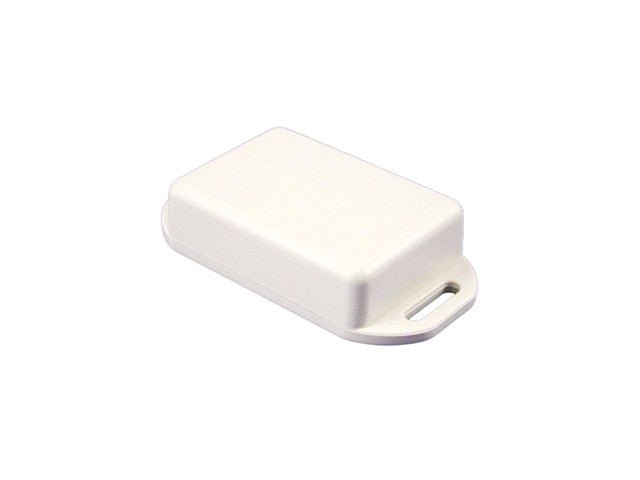

Miniature Flanged Lid Enclosure • ABS Plastic • 50mm x 35mm x 15mm • Grey4


  • Ideally suited for dongles and/or mounting small printed circuit boards with USB connectors
  • Molded in ABS plastic (material has a UL94-HB rating)
  • Choice of three (3) lengths in five (5) colors. Stocked in black, grey. translucent clear, translucent smoke and translucent red
  • Satin texture finish
  • Cover is recessed for easy label installation

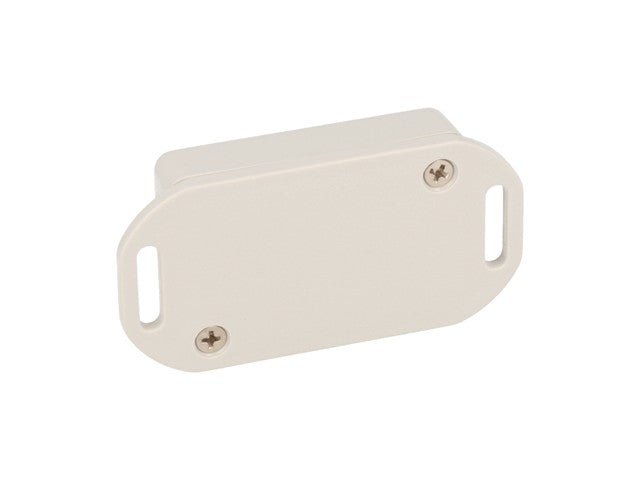

  • Complete with lid and two self tapping screws (plated for grey & clear, black for all other colors)

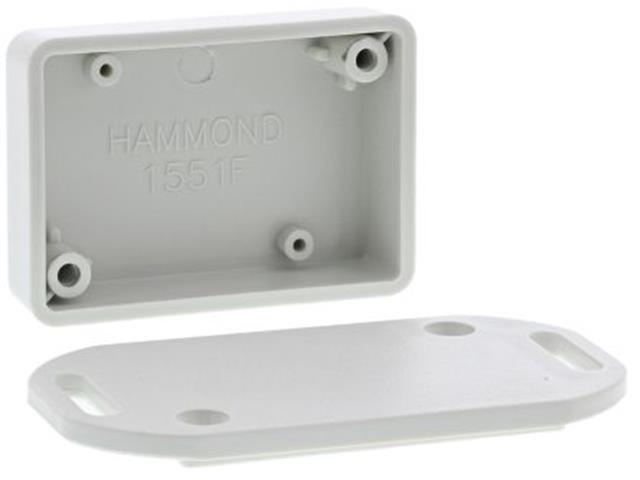

  • Two (2) or four (4) P.C. board standoffs molded into interior depending on enclosure size (see drawings for details)
  • Designed to meet IP54
  • USB connector is not included


Product Type Miniature USB Enclosure
Series 1551
Body Material ABS Plastic
External Dimensions 50 x 35 x 15 mm
External Length 50 mm
External Width 35 mm
External Height 15 mm
Internal Dimensions 46 x 31 x 12 mm
Internal Length 46 mm
Internal Width 31 mm
Internal Height 12 mm
Colour Light Grey
IP Rating IP54
Lid Colour Light Grey
Flame Rating UL94-HB
