1551FTBU

SKU: 1551FTBU

BRAND: Hammond


ABS Enclosure 50x35x15mm Translucent Blue IP54

Translucent Blue IP54 ABS Enclosure

Feature(s)

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.
  • Molded in a choice of black, gray, or translucent blue general purpose ABS plastic.
  • Satin texture finish.

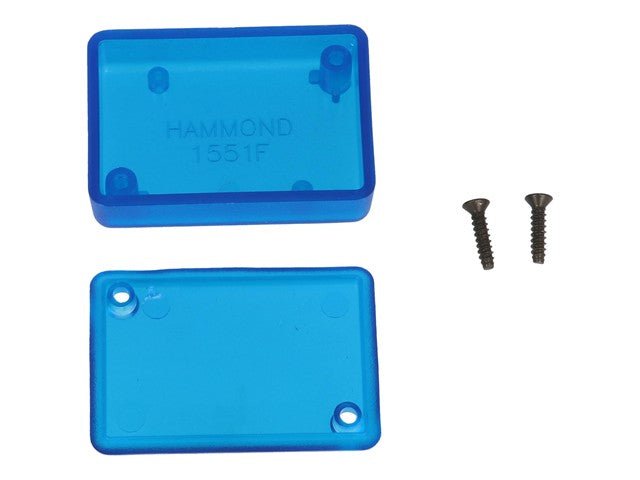

  • Complete with lid and two self tapping screws.
  • This series is also available with flanged lids.
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and
    black plated with black enclosures).
  • 2 P.C. board standoffs molded into interior.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Some sizes are available with a keyring kit.
  • Models with key ring kit are predrilled in the narrow side.
  • For even smaller enclosures, try our 1551MINI series.

Specifications

  • Size L x W x H : 1.97 in x 1.38 in x 0.59 in (50 mm x 35 mm x 15 mm)
  • Shipping Weight : 0.03 lbs (0.01 kg)
  • REACH Compliant : Yes
  • RoHS Compliant : Yes
  • Packaging Type : bag
  • Material : ABS Plastic
  • Color : Trans. Blue
  • Flame Rating : UL94 HB
  • IP Rating : IP54
  • Product Category : Enclosures
  • Type : Miniature, general purpose
  • Max. P.C. Board Length (mm) : 29.5
  • Max. P.C. Board Width (mm) : 44.5

Downloads

Additional Information

Device Enclosure
Type Translucent | Blue | IP54 | ABS
