1551GBK

SKU: 1551GBK

BRAND: Hammond

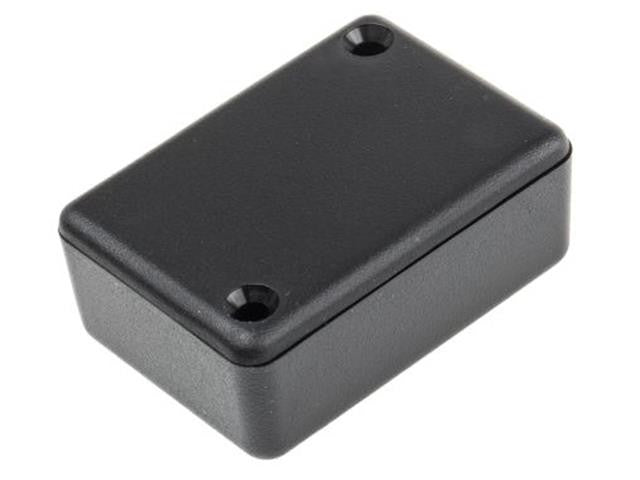

Miniature type Multipurpose Enclosure • ABS Plastic 50 mm x 35 mm x 20 mm Black

Miniature Type Multipurpose Enclosure

Feature(s)

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.
  • Molded in a choice of black or grey - general purpose ABS plastic.
  • Satin texture finish.

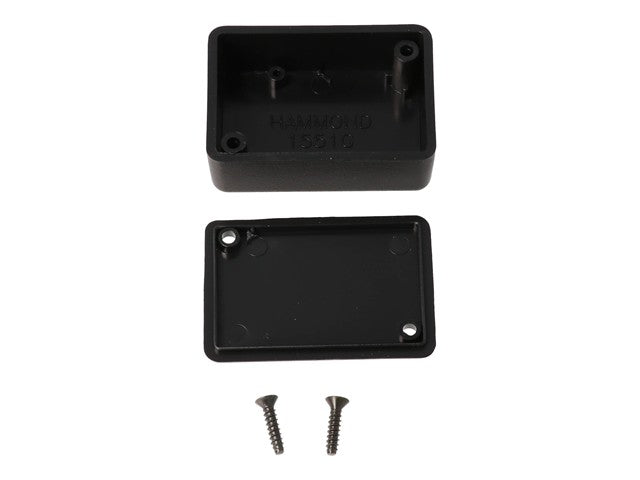

  • Complete with lid and two self tapping screws.
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures).
  • 2 P.C. board standoffs molded into interior.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.

Specifications

Size L x W x H 1.97 in x 1.38 in x 0.79 in
(50 mm x 35 mm x 20 mm)
Shipping Weight 0.04 lbs (0.02 kg)
Packaging Type bag
Material ABS Plastic
Color Black
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type Miniature, general purpose
Max. P.C. Board Length (mm) 29
Max. P.C. Board Width (mm) 44

Downloads

Additional Information

Device Enclosure
Type Miniature Type | Multipurpose
