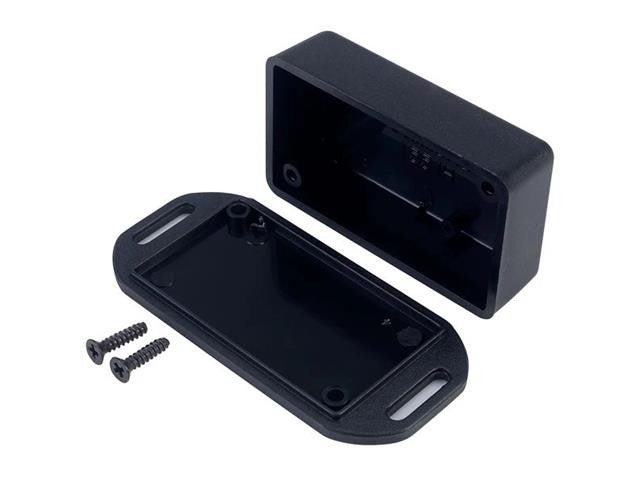

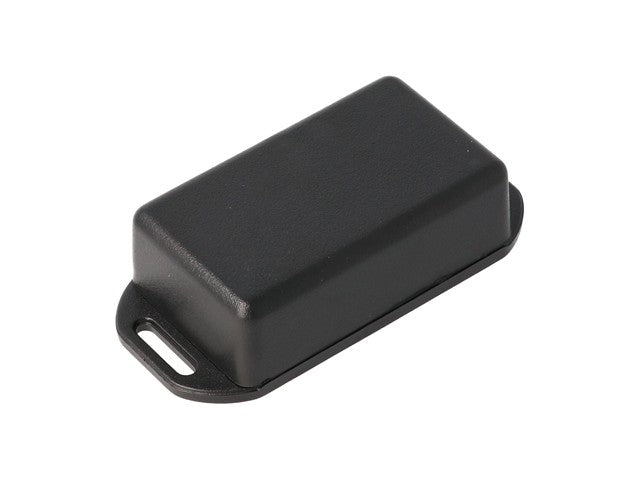

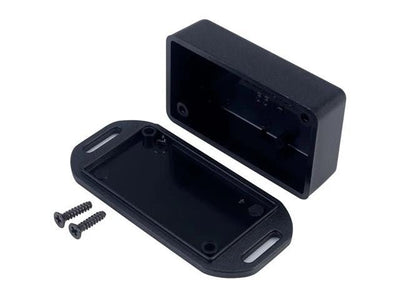

Miniature Flanged Lid Enclosure • ABS Plastic • 76.3 x 35 x 20 mm (With Lid) • Black
Features
- Ideally suited for mounting small printed circuit boards or used as potting boxes
- Molded in a choice of black, gray, or translucent blue general purpose ABS plastic
- Satin texture finish
- Complete with lid and two self tapping screws
- This series is also available with flanged lids
- Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures)

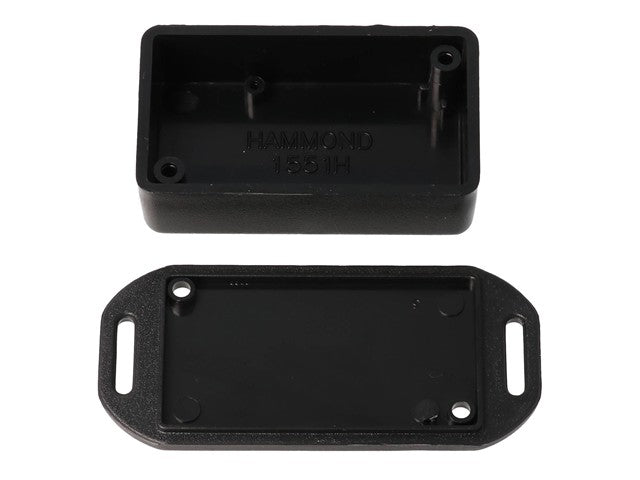

- 2 P.C. board standoffs molded into interior
- Lap joint construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Some sizes are available with a keyring kit
- Models with key ring kit are predrilled in the narrow side
Specifications
| Product Type |
Miniature Flanged Lid Enclosure |
| Series |
1551 |
| Body Material |
ABS Plastic |
| External Dimensions |
76.3 x 35 x 20 mm (With Lid) |
| External Length |
76.3 mm |
| External Width |
35 mm |
| External Height |
20 mm (With Lid) |
| Internal Dimensions |
54.73 x 29.73 x 16 mm |
| Internal Length |
54.73 mm |
| Internal Width |
29.73 mm |
| Internal Height |
16 mm |
| Colour |
Black |
| IP Rating |
IP54 |
| Lid Colour |
Black |
| Flame Rating |
UL94-HB |
| Protection Features |
Protection against Access of Dust and Splashing Water |
